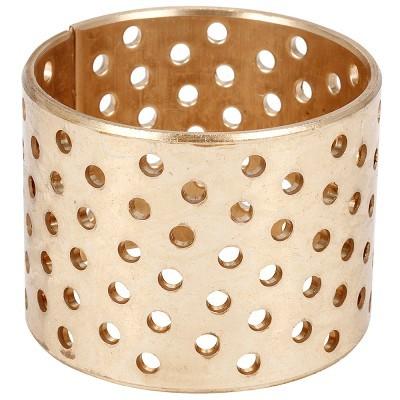

Rolled Perforated Bronze Flanged Bushing
The FB092F bronze flange bearing is made of bronze material and has even and orderly filled holes. Rolled thin-wall bearings are filled with grease after assembly, and then the face seal is used. The bearing has a large amount of residual oil, small size, convenient installation, convenient design, can replace the use of copper sleeves.
| Model Number comparing list |
| Product Number Size IDxODxL (mm) Bearing |
| FB090 1010 10x12x10 MBZ-B09 1010 |
| FB090 1015 10x12x15 MBZ-B09 1015 |
| FB090 1020 10x12x20 MBZ-B09 1020 |
| FB090 1210 12x14x10 MBZ-B09 1210 |
| FB090 1215 12x14x15 MBZ-B09 1215 |
| FB090 1220 12x14x20 MBZ-B09 1220 |
| FB090 1410 14x16x10 MBZ-B09 1410 |
| FB090 1415 14x16x15 MBZ-B09 1415 |
| FB090 1420 14x16x20 MBZ-B09 1420 |
| FB090 1425 14x16x25 MBZ-B09 1425 |
| FB090 1510 15x17x10 MBZ-B09 1510 |
| FB090 1515 15x17x15 MBZ-B09 1515 |
| FB090 1520 15x17x20 MBZ-B09 1520 |
| FB090 1525 15x17x25 MBZ-B09 1525 |
| FB090 1610 16x18x10 MBZ-B09 1610 |
| FB090 1615 16x18x15 MBZ-B09 1615 |
| FB090 1620 16x18x20 MBZ-B09 1620 |
| FB090 1625 16x18x25 MBZ-B09 1625 |
| FB090 1810 18x20x10 MBZ-B09 1810 |
| FB090 1815 18x20x15 MBZ-B09 1815 |
| FB090 1820 18x20x20 MBZ-B09 1820 |
| FB090 1825 18x20x25 MBZ-B09 1825 |
| FB090 182115 18x21x15 MBZ-B09 182115 |
| FB090 182120 18x21x20 MBZ-B09 182120 |
| FB090 182125 18x21x25 MBZ-B09 182125 |
| FB090 202210 20x22x10 MBZ-B09 202210 |
| FB090 202215 20x22x15 MBZ-B09 202215 |
| FB090 202220 20x22x20 MBZ-B09 202220 |
| FB090 202225 20x22x25 MBZ-B09 202225 |
| FB090 2010 20x23x10 MBZ-B09 2010 |
| FB090 2015 20x23x15 MBZ-B09 2015 |
| FB090 2020 20x23x20 MBZ-B09 2020 |
| FB090 2025 20x23x25 MBZ-B09 2025 |
| FB090 2030 20x23x30 MBZ-B09 2030 |
| FB090 2210 22x25x10 MBZ-B09 2210 |
| FB090 2215 22x25x15 MBZ-B09 2215 |
| FB090 2220 22x25x20 MBZ-B09 2220 |
| FB090 2225 22x25x25 MBZ-B09 2225 |
| FB090 2230 22x25x30 MBZ-B09 2230 |
| FB090 2410 24x27x10 MBZ-B09 242710 |
| FB090 2415 24x27x15 MBZ-B09 242715 |
| FB090 2420 24x27x20 MBZ-B09 242720 |
| FB090 2425 24x27x25 MBZ-B09 242725 |
| FB090 242810 24x28x10 MBZ-B09 2410 |
| FB090 242815 24x28x15 MBZ-B09 2415 |
| FB090 242820 24x28x20 MBZ-B09 2420 |
| FB090 242825 24x28x25 MBZ-B09 2425 |
| FB090 242830 24x28x30 MBZ-B09 2430 |
| FB090 2515 25x28x15 MBZ-B09 2515 |
| FB090 2520 25x28x20 MBZ-B09 2520 |
| FB090 2525 25x28x25 MBZ-B09 2525 |
| FB090 2530 25x28x30 MBZ-B09 2530 |
| FB090 2550 25x28x50 MBZ-B09 2550 |
| FB090 283115 28x31x15 MBZ-B09 283115 |
| FB090 283120 28x31x20 MBZ-B09 283120 |
| FB090 283125 28x31x25 MBZ-B09 283125 |
| FB090 283130 28x31x30 MBZ-B09 283130 |
| FB090 2815 28x32x15 MBZ-B09 2815 |
| FB090 2820 28x32x20 MBZ-B09 2820 |
| FB090 2825 28x32x25 MBZ-B09 2825 |
| FB090 2830 28x32x30 MBZ-B09 2830 |
| FB090 3015 30x34x15 MBZ-B09 3015 |
| FB090 3020 30x34x20 MBZ-B09 3020 |
| FB090 3025 30x34x25 MBZ-B09 3025 |
| FB090 3030 30x34x30 MBZ-B09 3030 |
| FB090 3035 30x34x35 MBZ-B09 3035 |
| FB090 3040 30x34x40 MBZ-B09 3040 |
| FB090 3215 32x36x15 MBZ-B09 3215 |
| FB090 3220 32x36x20 MBZ-B09 3220 |
| FB090 3225 32x36x25 MBZ-B09 3225 |
| FB090 3230 32x36x30 MBZ-B09 3230 |
| FB090 3235 32x36x35 MBZ-B09 3235 |
| FB090 3240 32x36x40 MBZ-B09 3240 |
| FB090 3520 35x39x20 MBZ-B09 3520 |
| FB090 3525 35x39x25 MBZ-B09 3525 |
| FB090 3530 35x39x30 MBZ-B09 3530 |
| FB090 3540 35x39x40 MBZ-B09 3540 |
| FB090 3550 35x39x50 MBZ-B09 3550 |
| FB090 4020 40x44x20 MBZ-B09 4020 |
| FB090 4025 40x44x25 MBZ-B09 4025 |
| FB090 4030 40x44x30 MBZ-B09 4030 |
| FB090 4035 40x44x35 MBZ-B09 4035 |
| FB090 4040 40x44x40 MBZ-B09 4040 |
| FB090 4050 40x44x50 MBZ-B09 4050 |
| FB090 4520 45x50x20 MBZ-B09 4520 |
| FB090 4525 45x50x25 MBZ-B09 4525 |
| FB090 4530 45x50x30 MBZ-B09 4530 |
| FB090 4535 45x50x35 MBZ-B09 4535 |
| FB090 4540 45x50x40 MBZ-B09 4540 |
| FB090 4550 45x50x50 MBZ-B09 4550 |
| FB090 4560 45x50x50 MBZ-B09 4560 |
| FB090 5020 50x55x20 MBZ-B09 5020 |
| FB090 5025 50x55x25 MBZ-B09 5025 |
| FB090 5030 50x55x30 MBZ-B09 5030 |
| FB090 5035 50x55x35 MBZ-B09 5035 |
| FB090 5040 50x55x40 MBZ-B09 5040 |
| FB090 5050 50x55x50 MBZ-B09 5050 |
| FB090 5060 50x55x60 MBZ-B09 5060 |
| FB090 5520 55x60x20 MBZ-B09 5520 |
| FB090 5525 55x60x25 MBZ-B09 5525 |
| FB090 5530 55x60x30 MBZ-B09 5530 |
| FB090 5535 55x60x35 MBZ-B09 5535 |
| FB090 5540 55x60x40 MBZ-B09 5540 |
| FB090 5550 55x60x50 MBZ-B09 5550 |
| FB090 5560 55x60x60 MBZ-B09 5560 |
| FB090 6025 60x65x25 MBZ-B09 6025 |
| FB090 6030 60x65x30 MBZ-B09 6030 |
| FB090 6035 60x65x35 MBZ-B09 6035 |
| FB090 6040 60x65x40 MBZ-B09 6040 |
| FB090 6045 60x65x45 MBZ-B09 6045 |
| FB090 6050 60x65x50 MBZ-B09 6050 |
| FB090 6060 60x65x60 MBZ-B09 6060 |
| FB090 6070 60x65x70 MBZ-B09 6070 |
| FB090 6530 65x70x30 MBZ-B09 6530 |
| FB090 6535 65x70x35 MBZ-B09 6535 |
| FB090 6540 65x70x40 MBZ-B09 6540 |
| FB090 6550 65x70x50 MBZ-B09 6550 |
| FB090 6560 65x70x60 MBZ-B09 6560 |
| FB090 6570 65x70x70 MBZ-B09 6570 |
| FB090 7030 70x75x30 MBZ-B09 7030 |
| FB090 7035 70x75x35 MBZ-B09 7035 |
| FB090 7040 70x75x40 MBZ-B09 7040 |
| FB090 7045 70x75x45 MBZ-B09 7045 |
| FB090 7050 70x75x50 MBZ-B09 7050 |
| FB090 7060 70x75x60 MBZ-B09 7060 |
| FB090 7070 70x75x80 MBZ-B09 7070 |
| FB090 7530 75x80x30 MBZ-B09 7530 |
| FB090 7535 75x80x35 MBZ-B09 7535 |
| FB090 7540 75x80x40 MBZ-B09 7540 |
| FB090 7550 75x80x50 MBZ-B09 7550 |
| FB090 7560 75x80x60 MBZ-B09 7560 |
| FB090 7570 75x80x70 MBZ-B09 7570 |
| FB090 7580 75x80x80 MBZ-B09 7580 |
| FB090 8030 80x85x30 MBZ-B09 8030 |
| FB090 8035 80x85x35 MBZ-B09 8035 |
| FB090 8040 80x85x40 MBZ-B09 8040 |
| FB090 8050 80x85x50 MBZ-B09 8050 |
| FB090 8060 80x85x60 MBZ-B09 8060 |
| FB090 8070 80x85x70 MBZ-B09 8070 |
| FB090 8080 80x85x80 MBZ-B09 8080 |
| FB090 8530 85x90x30 MBZ-B09 8530 |
| FB090 8535 85x90x35 MBZ-B09 8535 |
| FB090 8540 85x90x40 MBZ-B09 8540 |
| FB090 8550 85x90x50 MBZ-B09 8550 |
| FB090 8560 85x90x60 MBZ-B09 8560 |
| FB090 8570 85x90x70 MBZ-B09 8570 |
| FB090 8580 85x90x80 MBZ-B09 8580 |
| FB090 8590 85x90x90 MBZ-B09 8590 |
| FB090 9030 90x95x30 MBZ-B09 9030 |
| FB090 9035 90x95x35 MBZ-B09 9035 |
| FB090 9040 90x95x40 MBZ-B09 9040 |
| FB090 9050 90x95x50 MBZ-B09 9050 |
| FB090 9060 90x95x60 MBZ-B09 9060 |
| FB090 9070 90x95x70 MBZ-B09 9070 |
| FB090 9080 90x95x80 MBZ-B09 9080 |
| FB090 9090 90x95x90 MBZ-B09 9090 |
| FB090 90100 90x95x100 MBZ-B09 90200 |
| FB090 9540 95x100x40 MBZ-B09 9540 |
| FB090 9550 95x100x50 MBZ-B09 9550 |
| FB090 9560 95x100x60 MBZ-B09 9560 |
| FB090 9570 95x100x70 MBZ-B09 9570 |
| FB090 9580 95x100x80 MBZ-B09 9580 |
| FB090 9590 95x100x90 MBZ-B09 9590 |
| FB090 95100 95x100x100 MBZ-B09 95100 |
| FB090 10040 100x105x40 MBZ-B09 10040 |
| FB090 10050 100x105x50 MBZ-B09 10050 |
| FB090 10060 100x105x60 MBZ-B09 10060 |
| FB090 10070 100x105x70 MBZ-B09 10070 |
| FB090 10080 100x105x80 MBZ-B09 10080 |
| FB090 10090 100x105x90 MBZ-B09 10090 |
| FB090 10095 100x105x95 MBZ-B09 10095 |
| FB090 100100 100x105x100 MBZ-B09 100100 |
| FB090 10550 105x110x50 MBZ-B09 10550 |
| FB090 10560 105x110x60 MBZ-B09 10560 |
| FB090 10570 105x110x70 MBZ-B09 10570 |
| FB090 10580 105x110x80 MBZ-B09 10580 |
| FB090 10590 105x110x90 MBZ-B09 10590 |
| FB090 105100 105x110x100 MBZ-B09 105100 |
| FB090 11050 110x115x50 MBZ-B09 11050 |
| FB090 11060 110x115x60 MBZ-B09 11060 |
| FB090 11070 110x115x70 MBZ-B09 11070 |
| FB090 11080 110x115x80 MBZ-B09 11080 |
| FB090 11090 110x115x90 MBZ-B09 11090 |
| FB090 11095 110x115x95 MBZ-B09 11095 |
| FB090 110100 110x115x100 MBZ-B09 110100 |
| FB090 11550 115x120x50 MBZ-B09 11550 |
| FB090 11560 115x120x60 MBZ-B09 11560 |
| FB090 11570 115x120x70 MBZ-B09 11570 |
| FB090 11580 115x120x80 MBZ-B09 11580 |
| FB090 11590 115x120x90 MBZ-B09 11590 |
| FB090 115100 115x120x100 MBZ-B09 115100 |
| FB090 12025 120x125x25 MBZ-B09 12025 |
| FB090 12050 120x125x50 MBZ-B09 12050 |
| FB090 12060 120x125x60 MBZ-B09 12060 |
| FB090 12070 120x125x70 MBZ-B09 12070 |
| FB090 12080 120x125x80 MBZ-B09 12080 |
| FB090 12090 120x125x90 MBZ-B09 12090 |
| FB090 12095 120x125x95 MBZ-B09 12095 |
| FB090 120100 120x125x100 MBZ-B09 120100 |
| FB090 12560 125x130x60 MBZ-B09 12560 |
| FB090 12570 125x130x70 MBZ-B09 12570 |
| FB090 12580 125x130x80 MBZ-B09 12580 |
| FB090 12590 125x130x90 MBZ-B09 12590 |
| FB090 125100 125x130x100 MBZ-B09 125100 |
| FB090 13060 130x135x60 MBZ-B09 13060 |
| FB090 13070 130x135x70 MBZ-B09 13070 |
| FB090 13080 130x135x80 MBZ-B09 13080 |
| FB090 13090 130x135x90 MBZ-B09 13090 |
| FB090 130100 130x135x100 MBZ-B09 130100 |
| FB090 13560 135x140x60 MBZ-B09 13560 |
| FB090 13570 135x140x70 MBZ-B09 13570 |
| FB090 13580 135x140x80 MBZ-B09 13580 |
| FB090 13590 135x140x90 MBZ-B09 13590 |
| FB090 135100 135x140x100 MBZ-B09 135100 |
| FB090 14050 140x145x50 MBZ-B09 14050 |
| FB090 14060 140x145x60 MBZ-B09 14060 |
| FB090 14070 140x145x70 MBZ-B09 14070 |
| FB090 14080 140x145x80 MBZ-B09 14080 |
| FB090 14090 140x145x90 MBZ-B09 14090 |
| FB090 140100 140x145x100 MBZ-B09 140100 |
| FB090 14560 145x150x60 MBZ-B09 14560 |
| FB090 14570 145x150x70 MBZ-B09 14570 |
| FB090 14580 145x150x80 MBZ-B09 14580 |
| FB090 14590 145x150x90 MBZ-B09 14590 |
| FB090 145100 145x150x100 MBZ-B09 145100 |
| FB090 15045 150x155x45 MBZ-B09 15060 |
| FB090 15060 150x155x60 MBZ-B09 15060 |
| FB090 15070 150x155x70 MBZ-B09 15070 |
| FB090 15080 150x155x80 MBZ-B09 15080 |
| FB090 15090 150x155x90 MBZ-B09 15090 |
| FB090 150100 150x155x100 MBZ-B09 150100 |
| FB090 15560 155x160x60 MBZ-B09 15560 |
| FB090 15570 155x160x70 MBZ-B09 15570 |
| FB090 15580 155x160x80 MBZ-B09 15580 |
| FB090 15590 155x160x90 MBZ-B09 15590 |
| FB090 155100 155x160x100 MBZ-B09 155100 |
| FB090 16060 160x165x60 MBZ-B09 16060 |
| FB090 16070 160x165x70 MBZ-B09 16070 |
| FB090 16080 160x165x80 MBZ-B09 16080 |
| FB090 16090 160x165x90 MBZ-B09 16090 |
| FB090 160100 160x165x100 MBZ-B09 160100 |
| FB090 16560 165x170x60 MBZ-B09 16560 |
| FB090 16570 165x170x70 MBZ-B09 16570 |
| FB090 16580 165x170x80 MBZ-B09 16580 |
| FB090 16590 165x170x90 MBZ-B09 16590 |
| FB090 165100 165x170x100 MBZ-B09 165100 |
| FB090 17060 170x175x60 MBZ-B09 17060 |
| FB090 17070 170x175x70 MBZ-B09 17070 |
| FB090 17080 170x175x80 MBZ-B09 17080 |
| FB090 17090 170x175x90 MBZ-B09 17090 |
| FB090 170100 170x175x100 MBZ-B09 170100 |
| FB090 17550 175x180x50 MBZ-B09 17550 |
| FB090 17560 175x180x60 MBZ-B09 17560 |
| FB090 17570 175x180x70 MBZ-B09 17570 |
| FB090 17580 175x180x80 MBZ-B09 17580 |
| FB090 17590 175x180x90 MBZ-B09 17590 |
| FB090 175100 175x180x100 MBZ-B09 175100 |
| FB090 18045 180x185x45 MBZ-B09 18045 |
| FB090 18060 180x185x60 MBZ-B09 18060 |
| FB090 18070 180x185x70 MBZ-B09 18070 |
| FB090 18080 180x185x80 MBZ-B09 18080 |
| FB090 18090 180x185x90 MBZ-B09 18090 |
| FB090 180100 180x185x100 MBZ-B09 180100 |
| FB090 18560 185x190x60 MBZ-B09 18560 |
| FB090 18570 185x190x70 MBZ-B09 18570 |
| FB090 18580 185x190x80 MBZ-B09 18580 |
| FB090 18590 185x190x90 MBZ-B09 18590 |
| FB090 185100 185x190x100 MBZ-B09 185100 |
| FB090 19060 190x195x60 MBZ-B09 19060 |
| FB090 19070 190x195x70 MBZ-B09 19070 |
| FB090 19080 190x195x80 MBZ-B09 19080 |
| FB090 19090 190x195x90 MBZ-B09 19090 |
| FB090 190100 190x195x100 MBZ-B09 190100 |
| FB090 19560 195x200x60 MBZ-B09 19560 |
| FB090 19570 195x200x70 MBZ-B09 19570 |
| FB090 19580 195x200x80 MBZ-B09 19580 |
| FB090 19590 195x200x90 MBZ-B09 19590 |
| FB090 195100 195x200x100 MBZ-B09 195100 |
| FB090 20060 200x205x60 MBZ-B09 20060 |
| FB090 20070 200x205x70 MBZ-B09 20070 |
| FB090 20080 200x205x80 MBZ-B09 20080 |
| FB090 20090 200x205x90 MBZ-B09 20090 |
| FB090 200100 200x205x100 MBZ-B09 200100 |
| FB090 20560 205x210x60 MBZ-B09 20560 |
| FB090 20570 205x210x70 MBZ-B09 20570 |
| FB090 20580 205x210x80 MBZ-B09 20580 |
| FB090 20590 205x210x90 MBZ-B09 20590 |
| FB090 205100 205x210x100 MBZ-B09 205100 |
| FB090 21060 210x215x60 MBZ-B09 21060 |
| FB090 21070 210x215x70 MBZ-B09 21070 |
| FB090 21080 210x215x80 MBZ-B09 21080 |
| FB090 21090 210x215x90 MBZ-B09 21090 |
| FB090 210100 210x215x100 MBZ-B09 210100 |
| FB090 21560 215x220x60 MBZ-B09 21560 |
| FB090 21570 215x220x70 MBZ-B09 21570 |
| FB090 21580 215x220x80 MBZ-B09 21580 |
| FB090 21590 215x220x90 MBZ-B09 21590 |
| FB090 215100 215x220x100 MBZ-B09 215100 |
| FB090 22060 220x225x60 MBZ-B09 22060 |
| FB090 22070 220x225x70 MBZ-B09 22070 |
| FB090 22080 220x225x80 MBZ-B09 22080 |
| FB090 22090 220x225x90 MBZ-B09 22090 |
| FB090 220100 220x225x100 MBZ-B09 220100 |
| FB090 22560 225x230x60 MBZ-B09 22560 |
| FB090 22570 225x230x70 MBZ-B09 22570 |
| FB090 22580 225x230x80 MBZ-B09 22580 |
| FB090 22590 225x230x90 MBZ-B09 22590 |
| FB090 225100 225x230x100 MBZ-B09 225100 |
| FB090 23060 230x235x60 MBZ-B09 23060 |
| FB090 23070 230x235x70 MBZ-B09 23070 |
| FB090 23080 230x235x80 MBZ-B09 23080 |
| FB090 23090 230x235x90 MBZ-B09 23090 |
| FB090 230100 230x235x100 MBZ-B09 230100 |
| FB090 24060 240x245x60 MBZ-B09 24060 |
| FB090 24070 240x245x70 MBZ-B09 24070 |
| FB090 24080 240x245x80 MBZ-B09 24080 |
| FB090 24090 240x245x90 MBZ-B09 24090 |
| FB090 240100 240x245x100 MBZ-B09 240100 |
| FB090 25060 250x255x60 MBZ-B09 25060 |
| FB090 25070 250x255x70 MBZ-B09 25070 |
| FB090 25080 250x255x80 MBZ-B09 25080 |
| FB090 25090 250x255x90 MBZ-B09 25090 |
| FB090 250100 250x255x100 MBZ-B09 250100 |
| FB090 26060 260x265x60 MBZ-B09 26060 |
| FB090 26070 260x265x70 MBZ-B09 26070 |
| FB090 26080 260x265x80 MBZ-B09 26080 |
| FB090 26090 260x265x90 MBZ-B09 26090 |
| FB090 260100 260x265x100 MBZ-B09 260100 |
| FB090 27060 270x275x60 MBZ-B09 27060 |
| FB090 27070 270x275x70 MBZ-B09 27070 |
| FB090 27080 270x275x80 MBZ-B09 27080 |
| FB090 27090 270x275x90 MBZ-B09 27090 |
| FB090 270100 270x275x100 MBZ-B09 270100 |
| FB090 28060 280x285x60 MBZ-B09 28060 |
