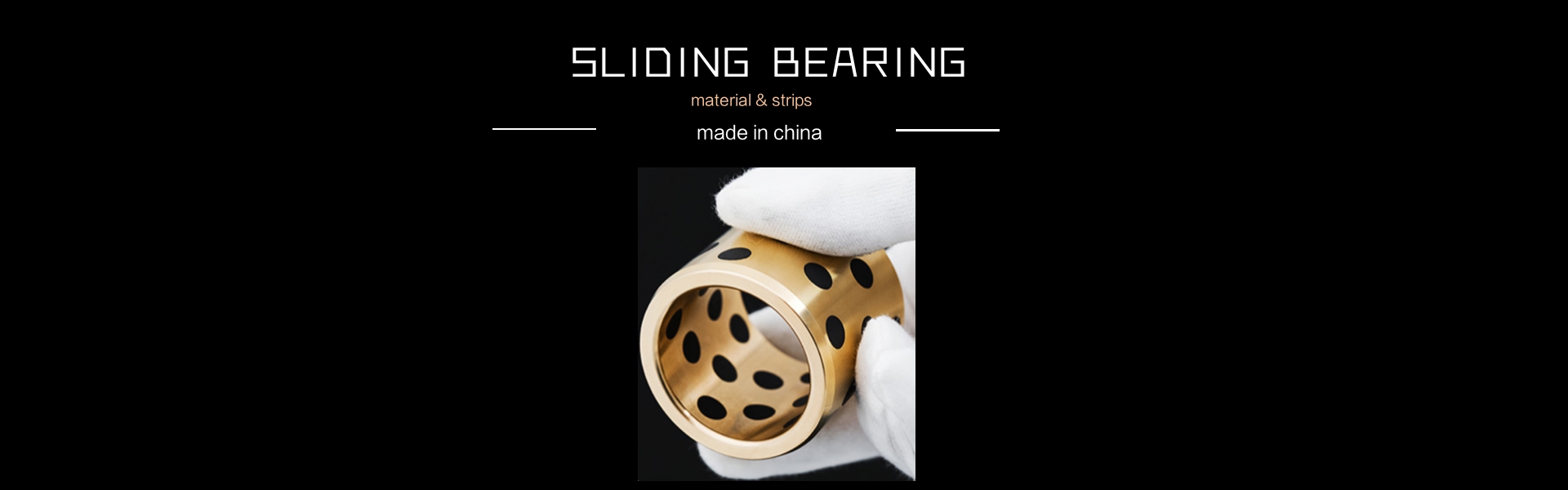

Solid Bronze Self Lubricating Bearing | Graphite Slide Wear Plate

The Solid Bronze Self-Lubricating Bearing, equipped with a Graphite Slide Wear Plate, is a high-performance bearing solution designed for durability and smooth operation.

The bearing is constructed from solid bronze, a material renowned for its excellent wear resistance and mechanical strength. This ensures that the bearing can withstand heavy loads and extreme operating conditions while maintaining its structural integrity.

The key feature of this bearing is the Graphite Slide Wear Plate. This plate, made from graphite, possesses exceptional lubricating properties that allow for smooth and friction-free operation. The graphite naturally releases lubricating oil, eliminating the need for external lubrication and reducing maintenance requirements.

The combination of solid bronze and graphite creates a bearing that is not only durable but also self-lubricating, making it suitable for a wide range of industrial applications. Wh it's machinery, equipment, or any other component that requires a smooth sliding surface, this bearing is an ideal choice.

In addition to its excellent performance, the Solid Bronze Self-Lubricating Bearing with Graphite Slide Wear Plate is also easy to install and maintain. Its robust design ensures reliable operation over extended periods, reducing downtime and operational costs.

In summary, the Solid Bronze Self-Lubricating Bearing with Graphite Slide Wear Plate offers a robust, durable, and self-lubricating bearing solution for industrial applications that require smooth and reliable operation.

Shop self-lubricating graphite sliding plate from bronzegleitlager.com for all your Oil-free Slide Plates Type·2 Bolt Holes / 3 Bolt Holes / 4 Bolt Holes and Guide Components needs from China.

STW, STWT Wear Plates - Bronze Lube

Self-lubricating copper guide plate manufacturer, Mismi standard slant wedge active plate CS15W CS30W CS45W, copper alloy guide plate STW SEW manufacturer, disc up standard self-lubricating guide plate factory offer, non-standard graphite copper guide plate factory offer, professional manufacturer of mold guide plate
It is a production and sales as one of the mold parts processing enterprises. The company specializes in the production and operation of high-precision hardware stamping mold parts, automotive mold standard parts, can refer to MISUMI Panqi PUNCH Danny DANLY FIBRO and other standard production and processing, with processing machine tools, CNC lathes, NC internal grinding machine, punch machine, plane grinding, centerless grinding, wire cutting and other advanced mold parts manufacturing equipment, and equipped with perfect testing instruments The products are sold to all regions of China with the use of the perfect logistics distribution center.
The main products are precision guide pillar guide sleeve GP GA GB, sliding guide pillar SGP, ball guide pillar SRP TRP, independent guide pillar TUB TUR, end die guide pillar assembly A-TRP, motor mold taper guide pillar guide sleeve; SKD11 DC53 SKH51 ASP23 material punch punches, edge forming punches, bud punches, hexagonal punches, guide punches, daughter punches; MISMI standard Independent guide pillar assembly MYP MYZP MYAP MYJP MYKP MJKP, steel ball guide pillar assembly for die holder RMSH QMSH PMSH GMSH, sliding guide pillar assembly for die holder RD RZ PD PZ PFZ RFZ, unloading plate guide pillar SGPWH SGOR SGPR SGON SGPN, unloading plate guide sleeve SGCZ SGHZ SGBF SGSF, Steel ball bushing MBSH MBJH; Mismi standard automotive mold guide post PKHL GPM GPOB, self-lubricating slide plate STW SEW MWF, sintered alloy guide plate STZ SEZ, self-lubricating guide bushing GBW GBF W SGBW, hook lifting bar CSN CHPL CHN CHNL, pan up standard hook PCHF PCHT and various automotive punching die parts. Our products are made of domestic high-quality raw materials, stable performance, heat treatment, professional manufacturers supporting services, and with advanced production equipment and a group of experienced professional and technical personnel, so that the precision, performance, service life of the products better, more convenient service! Products are mainly used in hardware mold factory, plastic mold factory, stamping factory, machinery factory, electrical appliances, automotive and other industries. With the further strengthening of the globalization trend of the mold market, in order to provide customers with more accurate, swift and better quality service. The company has made a comprehensive planning in management, technology, equipment, material and quality to stand on the principle of customer's interests, reduce product cost, more reasonable price and better quality to win the support and affirmation of new and old customers.
The company has been adhering to the "customer first, quality first" optimization development policy, will always adhere to the integrity of this principle, customer-oriented, in the spirit of responsibility, technology, quality, nano-period, integrity, service this business philosophy, dedicated to providing new and old customers with better products and better service. Welcome to call us and look forward to cooperating with you!

Quality sliding plate, buy STW graphite copper plate high-temperature self-lubricating / wear plate/guide rail slider strip Self-lubricating copper plate ...

We offer free CAD download, short lead times, competitive pricing, and small minimum order.

Self-lubricating graphite sliding plate. Graphite Bronze Slide Plates Technology

Guide to oil-free slide plates. bronze lube oil-free components are produced by embedding a special solid lubricant at appropriate locations.

Oil-Free Slide Plates - Oil-free Slide Plates With Lubricating Holes

Designation	SAE	Nominal Composition, Wt%
UNS		Cu	Sn	Pb	Zn	Fe	Ni	P	Al	Other
Leaded Red Brass
C83600	40	85	5	5	5	-	-	-	-	-
Tin Bronzes
C90300	620	88	8	-	4	-	-	-	-	-
C90500	62	88	10	-	2	-	-	-	-	-
C90700	65	88	11	-	-	-	-	-	-	-
Leaded Tin Bronzes
C92200	622	88	6	1.5	4.5	-	-	-	-	-
C92300		87.3	8	0.7	4	-	-	-	-	-
C92700	63	88	10	2	-	-	-	-	-	-
High-Leaded Tin Bronzes
C93200	660	83	7	7	3	-	-	-	-	-
C93400	-	84	8	8	-	-	-	-	-	-
C93500	66	85	5	9	1	-	-	-	-	-
C93600	M-64	80	7	12	1	-	-	-	-	-
C93700	64	80	10	10	-	-	-	-	-	-
C93800	67	78	7	15	-	-	-	-	-	-
C94100	-	73	5.5	20	1	-	-	-	-	-
C94300	(AMS-4840)	68	5	25	.8	-	1	-	-	-
C94500	-	72	7	19	1.2	-	1	-	-	-
High-Strength Brasses
C86300	430B	63	-	-	25	3	-	-	6	3 Mn
C86400	-	59	-	1	40	-	-	-	-	-
Aluminum Bronzes
C95300	68b	89	-	-	-	1	-	-	10	-
C95300HT	-	89	-	-	-	1	-	-	10	-
C95400	-	85	-	-	-	4	-	-	11	-
C95400 HT	-	85	-	-	-	4	-	-	11	-
C95500	-	81	-	-	-	4	4	-	11	-
C95500 HT	-	81	-	-	-	4	4	-	11	-
C95520	-	75	-	-	-	5	5	-	11	3 Mn
C95800	-	79	-	-	-	4	4.5	-	9	1 Mn
Silicon Brasses
C87600	-	90	-	-	5.5	-	-	-	-	4.5 Si
C87900	-	65	-	-	34	-	-	-	-	1 Si
Copper Berylium Alloys
C82800	-	96.6	-	-	-	-	-	-	-	2.6Be/
										.5Co/
										.25Si
Leaded Copper
C98820	484	Rem	-	42	-	-	-	-	-	-
Lead.-Free Bronze
C89320	-	89	6	-	-	-	-	-	-	5 Bi

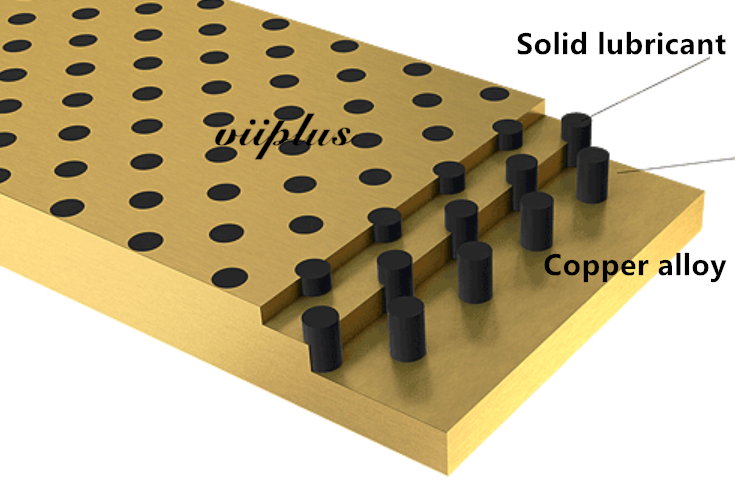

Copper alloy＋Special solid lubricant

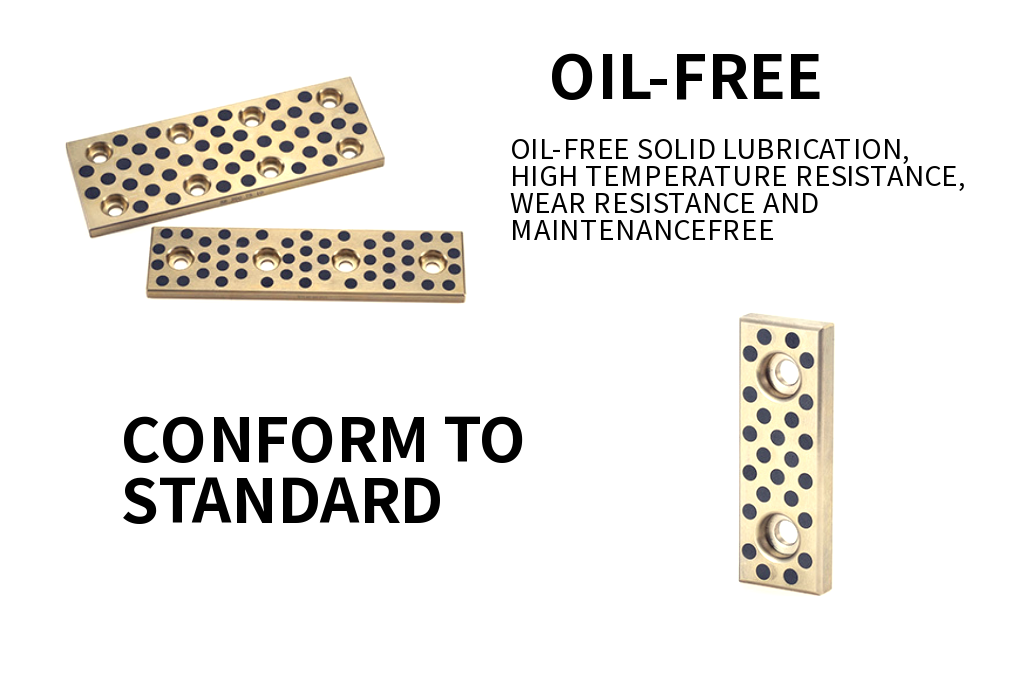

Oil-Free Slide Plate (10mm)

Oil-Free Slide Plate for universal use in many dry applications such as die/mold, machinery, automation, construction, automobile. Oil-Free is self-lubrication and work without grease.
Material : #500SP

25STWW	28	75	45	-
		100	50
		125	75
		150	100
	38	75	45	-
		100	50
		125	75
		150	100
	48	75	45	-
		100	50
		125	75
		150	100
		200	150
	58	75	45	-
		100	50
		150	100
	75	75	25	-
		100	50
		125	75
		150	100
		200	150
25STWW 25STWWD	100	100	50	50
		125	75
		150	100
		200	150
		250	200
	125	150	100	50
		200	150
		250	200
	150	150	100	100
		200	150

(High Strength Brass / Copper Alloy + Solid Lubricant)

Self Lubricating Bronze Wear Plate, bronze slide plates, slide plates, Oil-free slide plates.
Many of the fully machined bronze Oil-free slide plates with copper alloys wear plates that we manufacture are self-lubricating. This is achieved by a process of plugging the bronze plate with plugs of graphite. We offer a full line of plug graphite bearings. More information on our graphite plugged parts can be found here.

Wear Plates - SelfLube Mold and Die Products, plugged graphite bronze Oil free slide plates with copper alloys wear plates are available in a broader range of sizes.

custom configurations for special sizes, hole patterns, or graphite patterns.made in china. Cast Bronze Wear Plate Oil-free slide plates with copper alloys

Our Cast Bronze Wear Plate is produced by a method known as continuous casting. The fine grain structure obtained through continuous casting virtually eliminates casting defects associated with static casting methods. This dense structure is free from porosity which in turn prolongs the life of your tooling.

Alloys

Our cast bronze wear plates Oil-free slide plates with copper alloys can be supplied in the following bronze alloys:

• C95400Manganese Bronze: C954 Manganese Bronze Bus...

• C93200Manganese Bronze : C932 Manganese Bronze bea...

• C86300 Manganese Bronze: C863 Manganese Bronze gr...

Self Lube Wear Plates Oil-free slide plates with copper alloys Cam Slide Guide, PLUG GRAPHITE BRONZE BUSHINGS Maintenance-free Plain Bearings lamina gib slides.

Easy to install, highly durable. Its optimized design allows for easy installation, low noise operation, space savings, and extended service life for bronze bushings.

Slide elements/Cam components/Cam units/Plastic mold components

Solid Bronze Metallic Self Lubricating Bearing | Flanged Bronze Bushings

Cast Bronze Sleeve (Plain) Bearings. Standard sliding bearing stock size.

These standards provide off-the-shelf economy for most applications

Casting Tin Bronze SAE 620 C90300 Bronze Bushings

C90300 BRONZE GRAPHITE BUSHINGS is a “GREEN” non-leaded alloy
Tin Bronze BUSHINGS – Navy G QQC-390B Type II and Type III
CDA 903 SAE 620 88-8-0-4 ASTM B505

Casting Tin Bronze C90300 Bushings

Copper, Brass, and Bronze Alloys fromVIIPLUS INTERNATIONAL

Grades :

BS 1400 (LG1, LG2, LG4, LG3, PB1, PB2, PB3, PB4, LPB1, LB1, LB2, LB3, LB4, AB1, AB2, HTB3, HTB1)

UNS (C62500, C83600, C84400, C86200,C86300, C87200, C90700, C93200, C93700, C93800, C95200, C95500)

BS EN (CC490K, CC491K, CC493K, CC480K, CC483K, CC482K, CC495K, CC496K, CC331G, CC333G, CC762S, CC764S).

Mfgr Process: Centrifugal Casting, Continuous Casting.

Forms: Round Bar, Hex Bar, Square Bar, Rectangles Bar, Pipes, Hollow Bar, Hex Hollow Bar, Square & Rectangle Hollow Bar, Bushings, Rings (As per requirement) Etc

Related Specifications & Applications for Common Casting Copper Alloys
Alloy Description	American Spec.	American Spec.	German Spec.	British Spec.	Typical Material Applications
	UNS	SAE	alloy	alloy
Cu85 Sn5 Zn5 Pb5 Leaded Gunmetal	C83600 ( CDA 836)	40	CuSn5ZnPb	LG2	Pump components, small gears, bearings, impellers, flanges, low-pressure valves, and fittings.
Cu83 Sn3 Zn8 Pb6 Leaded Gunmetal	C84400 (CDA 844)	-	CuSn2ZnPb	*LG1	Light duty bearings, general hardware, fixtures, low-pressure valves, and fittings.
Cu63 Al6 Fe3 Mn3 Zn25	C86300 (CDA 863)	430B	-	-	Heavy-duty high strength alloy for gears, cams, slow speed heavy load bearings, screw-down nuts.
Cu88 Sn8 Zn4 Tin Bronze	C90300 ( CDA 903)	620	-	-	Bearings, bushings, piston rings, valve components, seal rings, steam fittings, and gears.
Cu88 Sn10 Zn2 Tin Bronze	C90500 ( CDA 905)	62	CuSn10Zn	*G1	Marine pumps, valves, bearings, bushings, piston rings, steam fittings and gears.
Cu89 Sn11 Tin Bronze	C90700 ( CDA 907)	65	CuSn12	*PB1	Heavy-duty gears, high load bearings, bushings, and worm wheels.
Cu88 Sn6 Zn4 Pb2 Leaded Tin Bronze	C92200 ( CDA 922)	622	-	LG3	Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)
Cu87 Sn11 Ni2 Leaded Tin Bronze	C92500 ( CDA 925)	640	CuSn12Ni	CT2	Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.
Cu87 Sn11 Pb2 Leaded Tin Bronze	C92700 ( CDA 927)	63	CuSn12Pb	LB3	Heavy-duty bearings, bushings, piston rings, valve components, steam fittings, gears.
Cu83 Sn7 Zn3 Pb7 Leaded Tin Bronze	C93200 ( CDA 932)	660	CuSn7ZnPb		General utility bearings, bushings, and wear plates for medium speeds and pressures.
Cu85 Pb10 Sn5 High Leaded Tin Bronze	C93500 ( CDA 935)	66	-	LB4	high-speed bearings, bushings, high-speed light loading, and light pressure parts.
Cu80 Pb10 Sn10 High Leaded Tin Bronze	C93700 ( CDA 937)	64	CuPb10Sn	LB2	Bearings for high speed and heavy pressures, pump parts, pressure-tight castings.
Cu78 Pb15 Sn7 High Leaded Tin Bronze	C93800 ( CDA 938)	67	CuPb15Sn	LB1	Turbocharger bearings, bearings for general service and moderate pressures, railroad applications.
Cu87 AI10 Fe3 Aluminum Bronze	C95400 ( CDA 954)	-	CuAI10Fe	-	High strength bearings, bushings, gears, worms, wear plates, valve seats, and guides.
Cu81 AI10 Ni5 Fe4 Ni Aluminum Bronze	C95500 ( CDA 955)	-	CuAI10Ni	-	High strength bearings, corrosion-resistant parts, aircraft valve guides, and seats.
Cu80 AI10 Ni6 Fe4 Ni Aluminum Bronze	C95800 ( CDA 958)	-	CuAl10Ni	AB2	Anti-fouling saltwater corrosion-resistant parts and general marine hardware.
Phosphor Bronze Grade I	C54400		CuSn4	PB101

Phosphor Bronze Grade I	C54400	CuSn4	PB101
Phosphor Bronze Grade II	C51000	CuSn5	PB102
Phosphor Bronze Grade III	C51900	CuSn6	PB103
Phosphor Bronze	C52100	CuSn8	PB104

As a professional special copper alloy production plant, the company controls the chemical composition, mechanical properties, physical properties, and other properties of materials with strict internal standards.

The company produces the corresponding bronze alloy according to the relevant brand standards of China and foreign countries, with excellent performance and short delivery time.

The company's existing product brands: qsn6.5-0.1, qsn7-0.2, qsn8-0.3, ZCuSn10P1, ZCuPb10Sn10, ZCuPb15Sn8, ZCuPb20Sn5, ZCuSn5Pb5Zn5, ZCuSn6Zn6 Pb3, C54400, C84400, C93200, C93700, C93800, etc.

According to the national standard, American standard, German standard, and other customer standards for custom.

Products type: copper rod, copper tube, including shaped tube, rod.

Cylinder bearing Products & Suppliers

Product Description: Manganese Bronze bushing

This product is made of high strength brass CuZn25Al6Fe3Mn3 with a special formula, which has high mechanical properties, good casting performance, and good corrosion resistance in air, freshwater, and seawater. The products are widely used in continuous casting machines, mining machinery, ships, gas turbines, and so on.

Bearing & Bushings

Bearing is an important part of the steam turbine, which is divided into radial support bearing and thrust bearing. They are used to bear all the gravity of the rotor and determine the correct position of the rotor in the cylinder.

VSB-50W Washer Solid Bronze Metallic Self-lubricating Bearings

VSB-50 is a self-lubricating bearing material that consists of a high-quality bearing bronze with pockets filled with solid lubricant and a thin film of solid lubricant over the bearing surface to aid the running-in process. VSB-50 maintenance-free bearings, without the need for lubrication with oil or grease, are recommended for large bearings. have a low coefficient of friction

Description

Copper alloy inlaid self-lubricating bearing (foreign says deva. Glide) is based on copper alloy substrate, on the friction surface according to a certain proportion to drill out the appropriate size, arranged orderly several holes (diameter phi d 200 mm or less) or blind hole (diameter phi d > 200 mm), the embedded in the hole with a unique lubricating solid lubricant by the precision machining of a kind of high-performance self-lubricating bearings.

It breaks through the limitations of ordinary bearings depending on oil film lubrication, especially suitable for non-oil, high temperature, high load, low speed, anti-fouling, anti-corrosion, anti-radiation, as well as in water or vacuum solution infiltration and no oil lubrication or lubrication difficult under special working conditions.

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Chemical Compositions

Product NO.	Chemical Compositions
TOB 050	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Availability

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Typical Applications

• Water conservancy and hydropower industry
• Hydraulic machinery: hydraulic steel gate plane support slide, plane gate fixed wheel bearing, radial gate hinge bearing, hydraulic hoist bearing, pulley bearing, transmission wheel bearing;
• Turbine: guide blade shaft sleeve (guide, guide, guide), wheel shaft sleeve, pin shaft sleeve (connecting rod pin, push and pull rod pin, relay piston pin), anti-wear ring plate (thrust ring), anti-wear block, control ringside tile, etc..
• Metallurgical industry: continuous casting machine, die-casting machine, tension leveler, rolling mill, conveyor bearing, roll-cut shears (bilateral shears, fixed-length shears on the skateboard), etc.
• Other: mining machinery, ship machinery (anchor) for sliding parts, oil machinery, textile machinery, construction machinery, lifting transportation (lifting support shaft sleeve), vehicle production lines, auto mold, light industry, machinery, machine tool industry, filling equipment, punch surrounding equipment with bearing, plastic machinery, injection molding machine clamping mechanism, extrusion mechanism, turbine, instruments and meters, high voltage automatic switch, fireplaces, door hinge, drying oven, bake, and paper machine drying tunnel, high-temperature furnace with bearing, wind power and other industries and fields, and other industrial and agricultural machinery.

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
