The series of red bushings, designed with inch size splits, are specifically tailored for hydraulic applications. These bushings are manufactured from high-quality material, known for its excellent lubricity, chemical resistance, and wear resistance.

The red color of the bushings not only provides a clear visual indication but also helps to identify them easily during installation and maintenance. The inch size splits allow for precise fitment and adjustment, ensuring a secure and reliable fit within the hydraulic system.

The material ensures smooth operation and reduced friction, which is crucial in hydraulic systems. This reduces wear and tear on both the bushings and the mating surfaces, extending the overall lifespan of the hydraulic system.

The series bushings are suitable for a wide range of hydraulic applications, including pumps, valves, and cylinders. They can handle high pressures and temperatures, making them ideal for demanding industrial environments.

In summary, the series of red bushings with inch size splits are an excellent choice for hydraulic applications, providing superior performance, durability, and ease of installation.

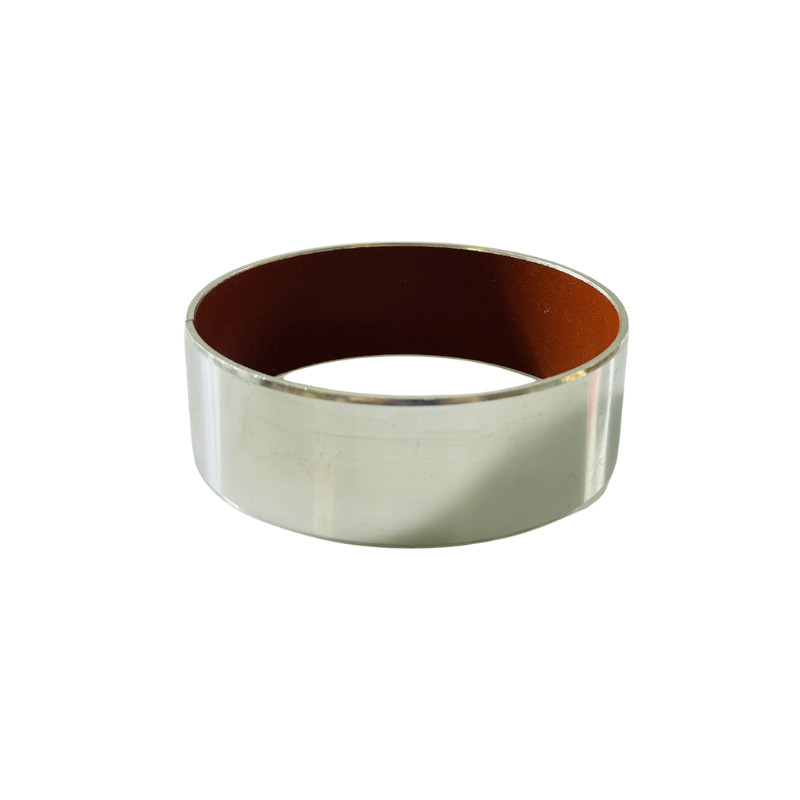

Red/ Bushings Inch Size

Switch from Bearings - metal-polymer-bearings Composites

Red/

stainless steel bushings

bushings

hydraulic bushing

oilless bushes

Customized red bushing to suit specific customer requirements

Oilless composite Sliding Self Lubricating Bearing Bushing

China Competitive Price Lubricated Stainless Steel Bushings with Red , Find details about China Hydraulic Bushing.

Hydraulic cylinder bushing & Cylinder Bushes

Red bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions.

Hydraulic bushings commonly used in automotive suspensions are expected to damp low-frequency high-displacement vibrations,

and also contribute to high-frequency acoustic isolation from relatively small displacements.

Hydraulic bushings typically have two hydraulic chambers connected by a channel.

The resonance of the fluid in the channel creates a mass-dampening effect.

A one-piece intermediate tube is used in some designs to improve the durability of the bushing and to separate the working part from

the elastomeric bushing where loads are removed from the outside of the elastomeric bushing where the channels are formed and the fluid seal

is provided for the fluid inside the bushing.

Hydraulic Bushing Feature

It is made of tin bronze as a matrix, sintered bronze spherical powder in the middle and laminated and high temperature resistant filler materials

on the surface and combined with the principle of oil cylinder and damper .

It has a high safety factor and is particularly suitable for places where continuous work cannot be interrupted for repairs and

where high temperatures cannot be refueled, especially suitable for frequent reciprocal occasions with a high inclination.

Hydraulic Bushing Material

Material: Steel Back + Porous Bronze Sinter +

Hydraulic Bushing Structure

1:＆Fiber mix
2:Cu90Sn10
3:Copper back
4:Anodized coating-Cu/Sn/Zinc

Hydraulic Bushing Technical Data

Red Bushing Application

Red bushing are widely used in automobile shock absorbers, motorcycle shock absorbers and hydraulic cylinders.

Bearing Types

sleeve, flanged, washer, strip, customzied.

Red Bushing Structure

Sliding layer

+ Fillers

Porous Bronze Sinter

Steel Backing

1: with polymer : 0.01-0.03mm
2:Porous bronze : 0.2-0.3mm
3:Steel backing : 0.7-2.3mm
4:Tin-plating 0.005mm or copper plating 0.008mm

Red Bushing Characteristics

• Red bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
• Very good performance in lubricated applications
• Good performance in greased applications
• Suitable for linear, oscillating and rotating movements

Red Bushing Operating Performance

Red Bushing Properties

* Depending on operating conditions

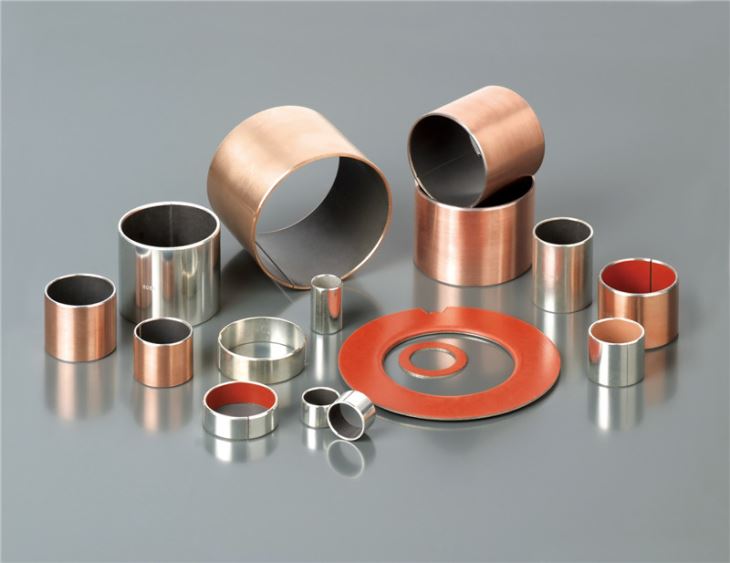

Availability

Bearing forms available in standard dimensions

• Cylindrical bushes
• Flanged bushes
• Sliding plates
• Thrust washers
• Customized bushing

Metric red bearings and imperial red bushings made to order:

Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs.

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.
