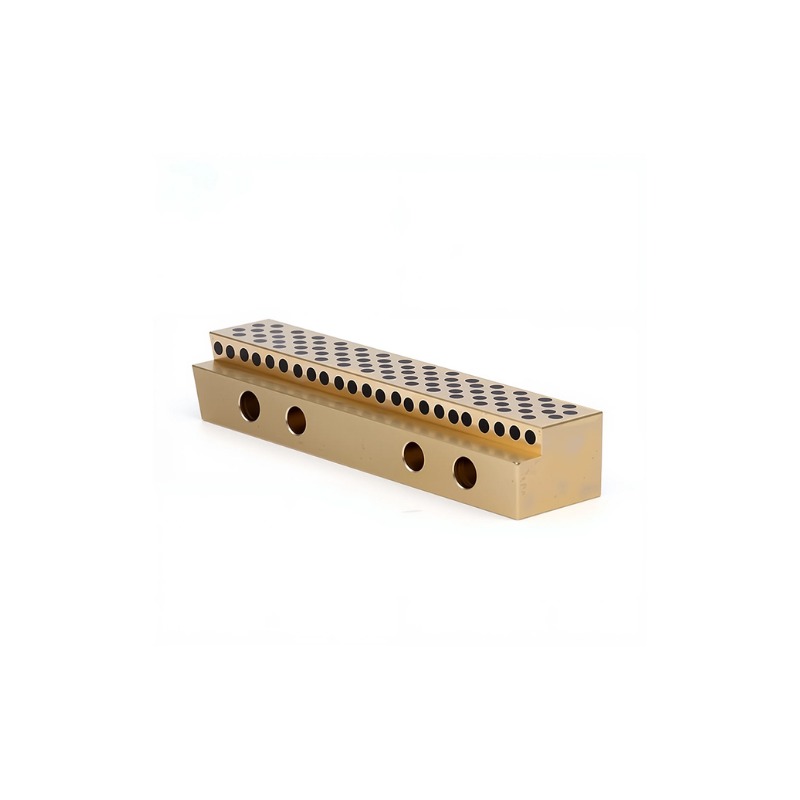

Standard L-Shaped Plates SOVL

Oil free slide plates SOVL with copper alloys, Size - Thickness - mm, Width -mm & Length - mm with self-lubricating holes.

Standard L-Shaped Plates SOVL, Oil-free slide plates

SOVL Standard L-Shaped Plates: Revolutionizing Industrial Applications with Copper Alloys

An oil-free self-lubricating graphite copper plate slide plate, this type of material is usually applied in environments that require high wear resistance and low friction, especially in components such as guide rails and guide plates. The advantage of the graphite copper plate sliding plate lies in its ability to provide continuous lubrication performance, reduce the demand for traditional lubricating oil, and enhance wear resistance at the same time.

The numbers SOL20 30 45 May refer to standards of different sizes or models, which are used in specific application scenarios or equipment.

Bronze Standard L-Shaped Plates SOVL are designed to offer oil-free self-lubricating performance in a variety of industrial applications. The bronze material used in their construction provides exceptional wear resistance and durability, making them suitable for high-load and high-friction environments.

The L-shaped design of these plates allows for easy installation and integration into various machinery and equipment. Their self-lubricating properties mean that they require no additional lubrication, reducing maintenance costs and operational downtime.

The SOVL plates are manufactured to strict standards, ensuring consistent quality and reliability. Wh used in conveyors, pumps, motors, or other industrial components, they provide a smooth and efficient operating surface that helps reduce friction and wear.

Overall, Bronze Standard L-Shaped Plates SOVL are a cost-effective and long-lasting solution for industrial applications that require oil-free self-lubricating components.

Introduction

In the realm of industrial applications, the demand for high-quality, durable, and efficient materials is ceaseless. Responding to this need, the SOVL Standard L-Shaped Plates have emerged as a groundbreaking solution, particularly for those seeking reliable and maintenance-free components. These plates, crafted from superior copper alloys, boast a unique oil-free design, making them a game-changer in various industrial settings.

Unveiling the SOVL Standard L-Shaped Plates

Unique Composition and Design

The SOVL Standard L-Shaped Plates are engineered from high-grade copper alloys, known for their excellent thermal and electrical conductivity, corrosion resistance, and mechanical strength. The choice of copper alloy as the material enhances the plates' suitability for challenging industrial environments where durability and reliability are paramount.

Oil-Free Innovation

One of the standout features of these plates is their oil-free design. Traditional components often require regular lubrication to maintain smooth operation and prevent wear and tear. However, the SOVL plates are designed to eliminate this need, reducing maintenance requirements and increasing efficiency. This feature is particularly beneficial in sectors where lubrication can contaminate products or is difficult to manage.

Dimensions and Customization

The SOVL Standard L-Shaped Plates are available in specific dimensions, tailored to meet diverse industrial requirements. Customers can select plates with a thickness of [insert thickness] mm, a width of [insert width] mm, and a length of [insert length] mm, ensuring a perfect fit for their specific applications. This level of customization allows for greater versatility and adaptability in various uses.

Self-Lubricating Holes for Enhanced Performance

Another innovative aspect of these plates is the inclusion of self-lubricating holes. These holes are strategically designed to enhance the plates' performance and longevity. They provide a constant source of lubrication from within, further reducing the need for external maintenance and ensuring smooth operation over an extended period.

Applications and Benefits

Wide Range of Industrial Uses

The SOVL Standard L-Shaped Plates find applications in numerous industrial sectors, including manufacturing, automotive, aerospace, and construction. Their robustness and efficiency make them ideal for high-stress environments where component failure is not an option.

Longevity and Cost-Effectiveness

The durability and low-maintenance nature of these plates translate into significant cost savings for businesses. By reducing the frequency of replacements and minimizing downtime due to maintenance, these plates offer a cost-effective solution over their lifespan.

Environmental Impact

The oil-free design of the SOVL plates not only reduces maintenance costs but also minimizes environmental impact. By eliminating the need for lubricants, these plates contribute to a cleaner and more sustainable industrial process.

Conclusion

The SOVL Standard L-Shaped Plates represent a significant advancement in industrial materials. Their unique copper alloy composition, oil-free design, customizable dimensions, and self-lubricating features make them an invaluable asset in various industrial applications. By enhancing performance, reducing maintenance needs, and offering environmental benefits, these plates stand out as a testament to innovative engineering and sustainable practices in the industrial sector.

Bronze plugged Oil free slide plates with copper alloys wear plates give products exceptional strength plus the lubricity and other desirable qualities of bronze. Advanced in design, each Bronze, Brass, and Self Lubricating Products is measured to precise standards and is distortion-free for reliable performance and excellent wearability. graphite plugs cover 25-30% of the area requiring lubrication.

Applications: High-strength bearings, bushings, gears, worms, Oil-free slide plates with copper alloys wear plates, valve seats, and guides.

Can be used for long periods without maintenance.
Designed for very high static and dynamic loads.
has a very low and smooth coefficient of friction with no "sticking".
Resistant to dust, corrosion, impact and edge loading.
Good shock absorption of metal substrates.
Ability to be used over a wide temperature range.
Suitable for applications where frequent start-ups such as reciprocating, rotating and oscillating are difficult to form an oil film.
Has an extremely low wear rate and a long service life.

Wear Block Rear with graphite | Cast Bronze Self Lube Oil-free slide plates with copper alloys Wear Plates, Plug Graphite Lube Plate C86300 C95400 Aluminum Bronze

Reasons for Selecting Plug Graphite Self-Lubricating Products

Plug Graphite Bearings Production

• Bronze Wear Plates Oil-free slide plates with copper alloys
• Pillar and Bushes
• Slide elements
• Cam components
• Cam units
• Retainers
• Plastic mold components

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

CHARACTERISTICS

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in a wide range of temperature from -40℃-+300℃

Chemical Compositions

Processing Bearing Equipment
High precision processing equipment is like a strong force magic weapon of surprise

AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.
