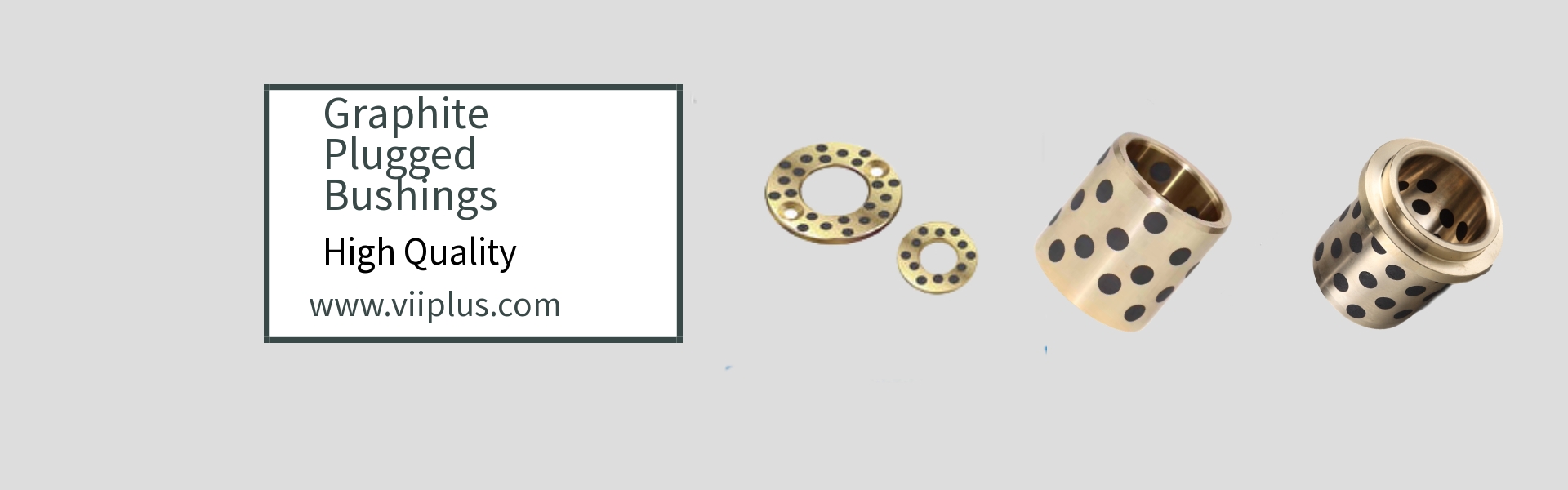

C932 Tin Bronze Oilless Bushes, also known as Graphite Plugged Bushing, refer to bearings made of C932 tin bronze alloy that are designed to operate without the need for external lubrication. These bushings are plugged or filled with graphite, which provides self-lubrication properties, reducing friction and wear during operation.

C932 tin bronze alloy is a copper-based alloy that contains tin as the primary alloying element. It offers excellent wear resistance, high strength, and good corrosion resistance, making it suitable for applications requiring reliable and durable bushings.

Graphite Plugged Bushings are commonly used in applications where lubrication may be difficult or impractical, such as in high-temperature or high-speed environments. The graphite filler acts as a lubricant, reducing friction and wear between the bushing and the mating component. This allows the bushing to operate smoothly and efficiently without the need for external lubrication.

These bushings are suitable for a wide range of applications in industries such as machinery, automotive, and aerospace. They can be used in rotating or sliding motion applications and are often paired with shafts, pins, or other rotating components.

The bushings are typically manufactured through casting or pressing methods, followed by machining and finishing operations to achieve the desired dimensions and surface finish. The graphite filler is then inserted into the bushing to provide the self-lubricating properties.

Durable Large Bronze Sleeve Bearings & Bushing Bore Diameter C932 Tin Bronze

Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.

Discovery the "Extra large size" or "Large Diameter" for any bearing requring an outside diameter exceeding our largest "off the shelf" size, generally 20 inches.Competitive Price Shaft Sleeve Graphite Bronze Bushing.These sliding bearings satisfy most applications and may be resized, oil grooved, or plugged graphited for special needs.Bushings, Bearings, Thrust Washers in various sizes.Order Online Today!

Machined Cast bronze bearings offer technically and economically favourable bearings solutions. High loading capability, low weight, good corrosion resistance. VIIPLUS SLIDING Bearing can offered different type bronze alloys according to the life time, service etc. The tolerance is much tighter than wrapped bronze bushes..

Made-To-Order From China.

Alloy C93200 is considered this family’s workhorse alloy and is widely used in sliding bearing & oilless guide applications.

Oversized Bronze Bearing Types Plugged Graphite

ALLOY 93200 Bronze Bearings

C932 LEADED TIN BRONZE DESIGNATIONS AND INFORMATION

We specializes manufactures C93200 Leaded Tin Bronze as a standard-stocked Bronze Bearing Plugged with metric size.

Similar or Equivalent Specification

Chemical Composition

C93200 bronze bearings has excellent machining properties, good hardness, and strength and wear resistance with excellent antifriction qualities.

Precision Sliding Bearings Manufacturing

Applications: Industrial - Selecting Bronze Bearing Materials."Extra large size" or "Large Diameter" Bronze Bearings are manufactured in a variety of sizes and shapes. These include sleeve bearings, flanged bearings, thrust washer and wear plate with graphite or groove.

Applications

1) Heavy duty tractor and farm implement equipment

2) Mining equipment

3) Forestry equipment

4) Mixing tank bladeshaft support

5) Foundry, furnace and steel production equipment

6) HVAC applications

7) Heavy duty caster and wheel support bearings

8) Kiln kart veneer dryer applications and possiblely other applications...

HTTP://WWW.BRONZEGLEITLAGER.COM

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.
