    25580/25520 Tapered roller bearings, single row

    Ask Lasest Price
    Brand Name : VIIPLUS
    Model Number : DEEP GROOVE BALL BEARING
    Certification : ISO9001
    Price : Price Graphite Wear Plate Parts Factory Price
    Payment Terms : T/T, Western Union
    Supply Ability : Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
    Delivery Time : FAST DELIVERY
    • Product Details
    • Company Profile

    25580/25520 Tapered roller bearings, single row

    The 25580/25520 tapered roller bearings, belonging to the single-row category, are designed to handle both radial and axial loads. These bearings feature a unique tapered geometry, which allows them to distribute loads evenly across the rolling elements, resulting in improved load capacity and reduced friction.

    The tapered rollers in these bearings are positioned between an inner cone and an outer cup, creating a rolling contact that reduces sliding friction and wear. The inner cone is attached to the shaft, while the outer cup is mounted in the housing, providing a robust and stable bearing system.

    The 25580/25520 tapered roller bearings are commonly used in applications that require high load capacity and precision alignment, such as automotive transmissions, industrial gearboxes, and construction equipment. They are also suitable for applications where there is a need for axial location and adjustment, such as in spindle bearings.

    Due to their superior load-handling capabilities and durability, these bearings are widely used in various industries and applications. However, it is important to ensure that they are properly installed, maintained, and lubricated to maximize their performance and longevity.


    25580/25520 Tapered roller bearings, single row, Dimension series 25500


    Tapered Roller Bearing, Shop deep groove ball bearings. Our bearings are designed to run quiet, handle high speeds, and have plain bearings with premium lubricants. Our Bearing Online Website: https://www.bearingface.com


    (1) 25580/25520 bearings


    25580 bearing set
    25580 bearing dimensions

    25580/25520


    Bearing Explorer

    Tapered roller bearings, single row

    DIMENSIONS


    d
    44.45 mm
    D
    82.931 mm
    T
    23.812 mm
    d1
    62.2 mm
    B
    25.4 mm
    C
    19.05 mm
    r1,2
    min. 3.5 mm
    r3,4
    min. 0.8 mm
    a
    16.993 mm

    ABUTMENT DIMENSIONS


    da
    max. 53 mm
    db
    min. 57 mm
    Da
    min. 71 mm
    Da
    max. 76.5 mm
    Db
    min. 76 mm
    Ca
    min. 5 mm
    Cb
    min. 4.5 mm
    ra
    max. 3.5 mm
    rb
    max. 0.8 mm

    CALCULATION DATA


    Basic dynamic load ratingC
    99.1 kN
    Basic static load ratingC0
    106 kN
    Fatigue load limitPu
    11.8 kN
    Reference speed
    6700 r/min
    Limiting speed
    8000 r/min
    Calculation factore
    0.33
    Calculation factorY
    1.8
    Calculation factorY0
    1

    (2) L68149/L68111 bearings

    (3) L44649/L44610 bearings

    L44649/L44610 AV

    Tapered Roller Nilos Ring - 1.0626 in ID, 1.9016 in OD, Externally Sealing


    Tapered roller bearings in metric and inch series. Flange side bearings. Single and double row. Thrust and steering bearings and U series. Bearings Size Chart part numbers.

    Tapered Roller Bearing - Roller Bearings Part Numbers

    Introduction


    The tapered roller bearing belongs to the separation type bearing.

    The inner and outer rings of the bearing have tapered raceways.

    This kind of bearing can be divided into single row, double row, and four-row tapered roller bearings according to the number of rows of rollers.


    With a wide range of designs to choose from, VIIPLUS tapered roller bearings are also customizable to match your specific speed, load, contamination, temperature, or vibration conditions.

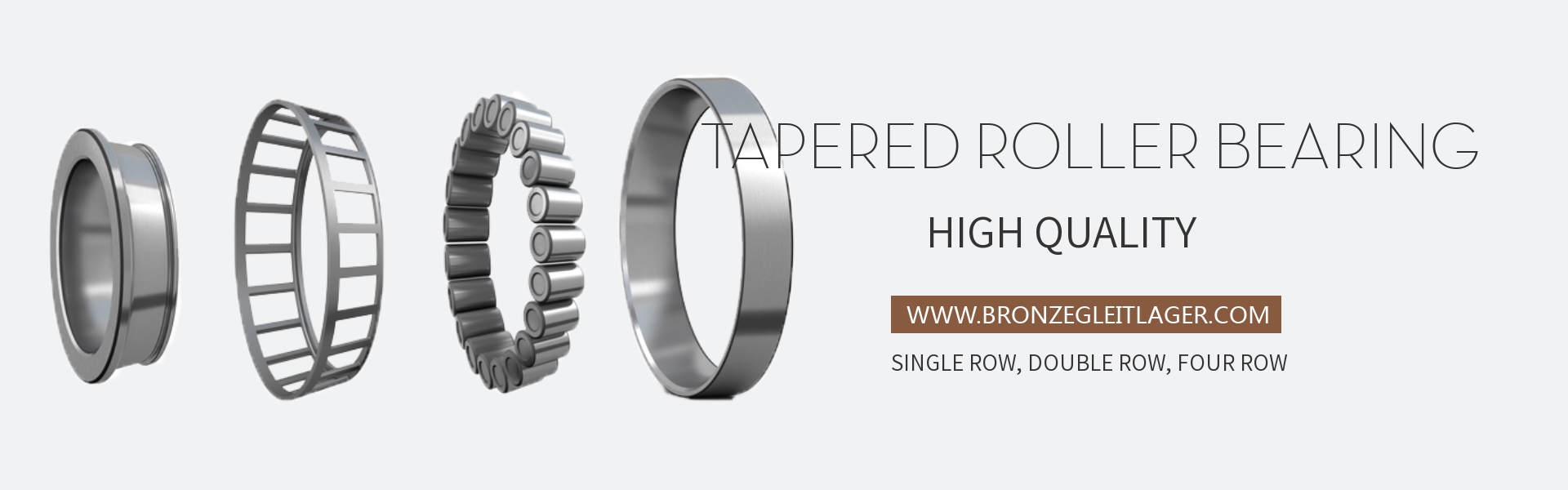

    VIIPLUS Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.

    VIIPLUS tapered roller bearings are also made to Explorer class. SKF Explorer combines our expertise in bearing design, tribology, metallurgy, lubrication, and manufacturing. SKF Explorer tapered roller bearings are typically used in bearing solutions where there is a need to increase performance, reduce friction or increase power density in applications.


    Tapered Roller Bearings


    Viiplus Taper Roller Bearings are manufactured in ISO9001 and TS-16949 certified facilities.
    The outer cup, inner cone, and rollers are produced using vacuum degassed 52100 bearing steel.
    The cage is using cold rolled steel.



    Viiplus can offer the following variants


    1. Metric 302xx, 303xx, 313xx, 320xx, 322xx, 323xx and 329xx series
    Dow row and four-row
    Wide range of Inch type bearings
    2. Pressed steel and polyamide cage
    2. Bore - 15mm ~ 1600mm
    3. Precision and Noise - ABEC-5, ABEC-3, ABEC-1; Z2, Z1


    TAPERED ROLLER BEARING

    Tapered roller bearings are uniquely designed to manage both thrust and radial loads. Consisting of a "tapered cup" and a "tapered cone", this design is one of the most basic and common styles in the bearing industry. Found in everything from cars to conveyor lines, tapered roller bearings are more versatile than any other bearing series. Our taper bearings are sold in sets with both the cup and the cone tog.

    Find everything you're looking for in one place. Our massive inventory at The Big Bearing Store has almost everything in stock and ready to ship. Our friendly and knowledgeable staff is ready to assist you in finding whatever you need.

    Application


    Viiplus supply rolling bearings for all kind of harsh application in extreme environments and precision application, such as oil fields, mine sites, steel and aluminum rolling mills, power generation, corrugated products, paper making, rock crushing, gear drives, forging and stamping process


    CommodityTapered Roller Bearing
    MaterialGcr15 / Chrome Steel/100Cr6
    CageSteel
    Hardness60-63
    ClearanceC2 C3 C4 C5
    PrecisionP1 P2 P3 P4 P5 PX
    RowSingle
    VibrationZ1 Z2 Z3

    Product Name

    Taper Roller Bearing

    Brand

    viiplus

    Ring Material

    chrome Steel

    Cage Material

    Steel only

    Vibration

    ZV1, ZV2, ZV3

    Clearance

    C0,C2,C3, or as requested

    Quality standard

    ISO9001:2000/ SGS

    Type

    302 series,303 series,313 series,322 series,323 series,329 series,331 series

    Features

    Low friction, Long service life, Enhanced operational reliability, Consistency of roller profiles and sizes, Rigid bearing application, Running-in period with reduced temperature peaks, Separable and interchangeable

    Quality Control Process

    1.Assembly 2.Windage test

    3.Cleaning 4.Rotary test

    5.Greasing and gland 6.Noise inspection

    7.Appearance inspection 8.Rust prevention

    Application

    Single row deep groove ball bearings are available capped (with seals or shields) or open. Open bearings that are also available capped may have recesses in the ring side faces.


    Used in a Precision instrument, low noise machine, automobile, motorcycle, and the general machinery and so on, it is the most widely used bearing type in the machinery industry.
