The Cylindrical CuSn8P Self-Lubricating Plain Bearing is a high-performance bearing designed to offer exceptional durability and reliability in various industrial applications. The CuSn8P material, a bronze alloy with phosphorus addition, exhibits superior wear resistance and load-bearing capacity, making it suitable for bearings that require high strength and long-term stability.

The cylindrical shape of this bearing ensures smooth and even rotation, minimizing friction and wear. The self-lubricating property of CuSn8P material further enhances its performance by reducing the need for external lubrication, thus simplifying maintenance and extending the bearing's lifespan.

The plain bearing design allows for easy installation and integration into various mechanical systems. It can withstand high loads and temperatures, making it suitable for use in demanding environments such as heavy-duty machinery and high-speed applications.

In summary, the Cylindrical CuSn8P Self-Lubricating Plain Bearing offers a robust and reliable solution for industrial applications that require smooth and efficient operation. Its superior material properties and self-lubricating design ensure long-term performance and durability, reducing the need for frequent maintenance and replacements.

Plain Cylindrical Bronze Bushing | 3220

Plain Cylindrical Bronze Bushing, cusn8p chemical composition

VIIPLUS is a bronze bushing supplier of agricultural machinery from china. We design, develop, and export high-quality flange bushing, Plain Cylindrical Bronze Bushing to withstand demanding nordic conditions. 3220 liukulaakeriholkki

Wrapped Bronze Bushings.pdf

A GLOBAL SOURCING AND INVENTORY MANAGEMENT COMPANY

PLAIN BEARING 40X44X30MM BRONZE PERFORATED

- bushing for use in machine construction and repairs

- port-lubricated type

- inner diameter Ø 40 mm

- outer diameter Ø 44 mm

- length 30 mm

- wall thickness 2 mm

- lubrications ports 4 mm

- material bearing bronze

Get A Free Quote!

092 Wrapped Bronze liukulaakeriholkki With Through Holes Dimensions

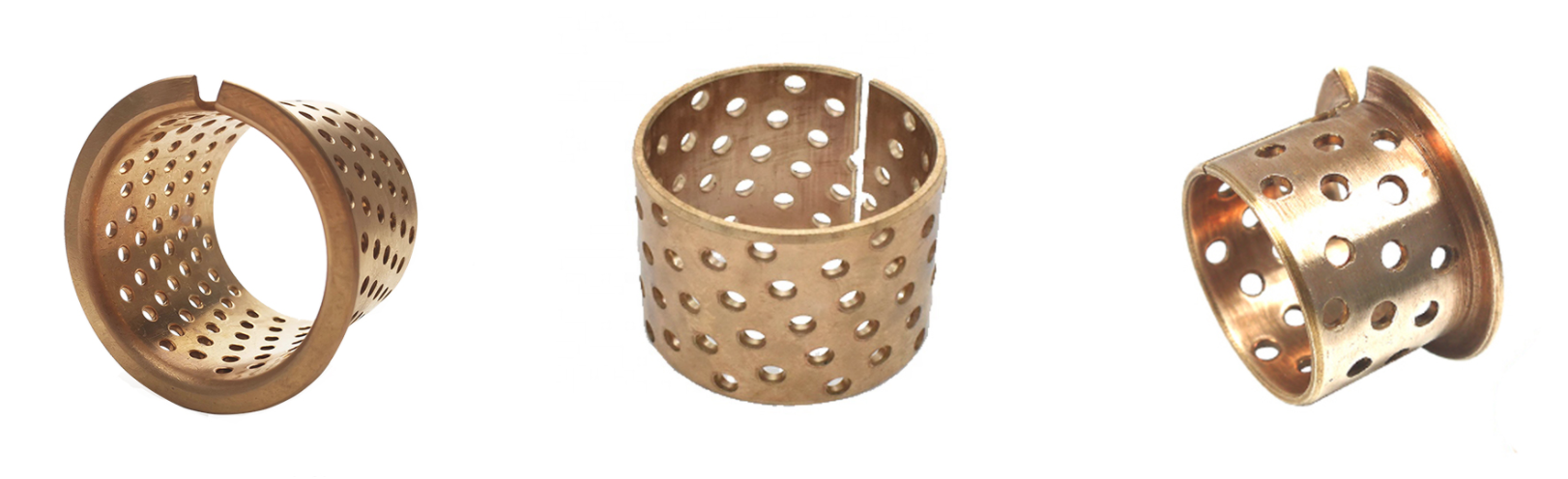

Wrapped Bronze Bushing liukulaakeriholkki With Through Holes 092

These professional wrapped bronze plain bearings liukulaakeriholkki with holes 092 manufacturers in China, welcome to buy the customized and low price bronze hole sleeve, bronze bearing bush, wrapped bronze sleeve or get the free sample from our factory.

Wrapped in bronze plain bearings liukulaakeriholkki with through holes

Metal and bronze liukulaakeriholkki are strong and typically withstand very large loads and impact loads. In addition to liukulaakeriholkki, our range includes pressure rings and plain plates as well as bronze alloy Pipes and materials.

The products in the range of metal and liukulaakeriholkki are mainly self-lubricating bearings. For lubricant, the liukulaakeriholkki has, depending on the model, grease holes, grooves or holes from which the lubricant is dispensed when the bearing is in use. This allows for a low coefficient of friction, which guarantees a long life for the bearing.

Tin Bronze Bushing tinapronssiliukulaakerit-092

092 liukulaakeriholkki bearings have good value for money, bearing capacity and thermal conductivity. The bronze alloy contains phosphorus, which improves sliding properties and wear resistance. The sliding surface of 092 liukulaakeriholkki tin-bronze bearings has through holes, which allows the bearing to store a larger amount of lubricant than 090 liukulaakeriholkki bearings. In other respects, the 092 liukulaakeriholkki bearing is very similar to the S090 liukulaakeriholkki bearing.

Technical data: (at operating temperature + 20 ° C)

made of phosphorus-containing bronze alloy CuSn8P
hardness 125-150 HB
temperature range -100 ° C to + 200 ° C
maximum speed 2.5 m / s
coefficient of friction 0.08-0.25
max. static load 280 N / mm² (no movement)
load dynamic 80-120N / mm² (> up to 0.01 m / s)
load dynamic 30-40 N / mm² (0.01-2.5 m / s)

Liukulaakeriholkki Structure

Bronze Bushing Cusn8p chemical composition

Bronze Bushing consist of CuSn8 holes through

CuSn8 with composition (Sn:8%, P<0.05%, Cu:Rest)

Liukulaakeriholkki Technical Data

092 Liukulaakeriholkki Oil Indentations Holes

Liukulaakeriholkki Characteristics

• Bearing material CuSn8 made of solid bronze strip with perforation for lubricated applications.
• Good wear resistance, suitable for rough conditions.
• Optimum performance under relatively high loads and low speeds.
• These holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication.

Liukulaakeriholkki Typical Application

Wrapped bronze bushing with through holes 092 is suitable for high load, lower speed application like construction, transport and agriculture machinery etc.

Pronssilaakeri rasvataskulla BRM 80 Bronze Bushing

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.
