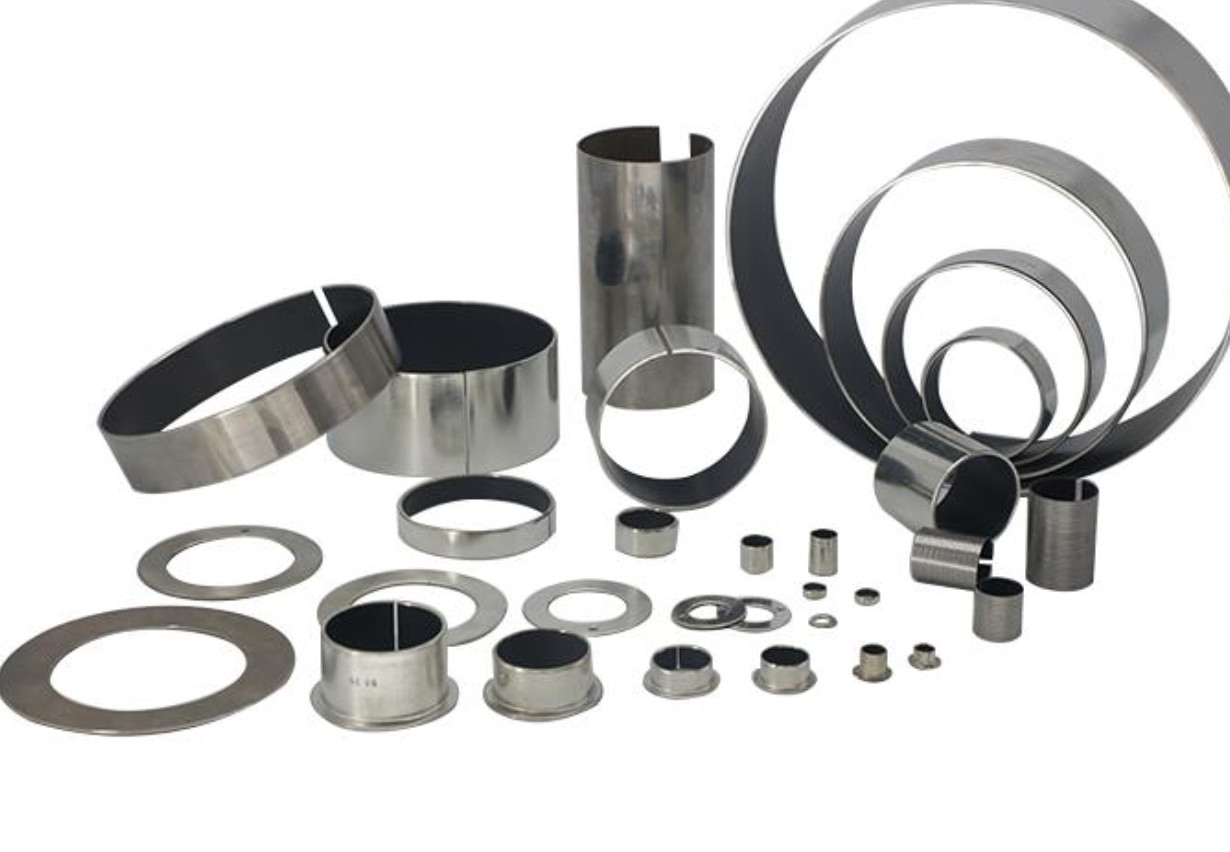

Buchsen 316 stainless steel bushings, also known as sliding plain sleeve bearings, are mechanical components designed to reduce friction between moving parts. Here are some key features and benefits of these bushings:
Material: 316 Stainless Steel
Corrosion Resistance: 316 stainless steel offers excellent resistance to corrosion, making it suitable for harsh environments, including those exposed to chemicals, saltwater, and acidic substances.
Strength and Durability: This material provides high tensile strength and durability, ensuring a long service life even under heavy loads and high stress.
Temperature Resistance: 316 stainless steel can withstand a wide range of temperatures, making it suitable for both high-temperature and cryogenic applications.
Design: Sliding Plain Sleeve Bearing
Low Friction: These bushings are designed to provide smooth sliding motion with minimal friction, which is essential for efficient operation and reduced wear.
Self-Lubricating Options: Some 316 stainless steel bushings come with self-lubricating features, reducing the need for external lubrication and maintenance.
Precision Fit: They are manufactured to tight tolerances, ensuring a precise fit and optimal performance in various applications.
Applications
Marine Environments: Due to their corrosion resistance, these bushings are ideal for marine applications, including boat fittings and underwater equipment.
Chemical Processing: Suitable for use in chemical plants where resistance to corrosive substances is crucial.
Food and Beverage Industry: 316 stainless steel is often used in food processing equipment due to its non-reactive nature and ease of cleaning.
Medical Devices: The material's biocompatibility makes it suitable for medical and pharmaceutical applications.
Maintenance
Low Maintenance: The inherent properties of 316 stainless steel reduce the need for frequent maintenance, although regular inspections are recommended to ensure optimal performance.
Cleaning: Easy to clean and sterilize, which is particularly important in industries like food processing and healthcare.
Installation
Press-Fit or Adhesive Bonding: These bushings can be installed using a press-fit method or adhesive bonding, depending on the application requirements.
Machining: They can be easily machined to custom sizes and shapes if needed.
Advantages
Longevity: The combination of material properties and design ensures a long operational life.
Versatility: Suitable for a wide range of industries and applications.
Cost-Effective: Despite the higher initial cost, the durability and low maintenance requirements make them cost-effective in the long run.
In summary, Buchsen 316 stainless steel bushings are highly reliable components that offer excellent performance in demanding environments. Their corrosion resistance, strength, and low friction properties make them ideal for a variety of industrial applications.
Buchsen 316 Stainless Steel Bushings, also known as sliding plain sleeve bearings, are mechanical components designed to provide a smooth, low-friction surface for rotary or reciprocating motion. These bushings are typically made from 316 stainless steel, which offers excellent corrosion resistance and durability, making them suitable for applications in harsh environments.
The 316 stainless steel material is known for its high chromium and nickel content, which provides superior resistance to oxidizing acids and chlorides. This makes it a popular choice for bushings that are exposed to corrosive chemicals or are used in marine environments.
Sliding plain sleeve bearings, like Buchsen 316 Stainless Steel Bushings, are often used in applications where precision alignment and smooth operation are critical. They can be found in a variety of industries, including automotive, aerospace, manufacturing, and more.
When installing Buchsen 316 Stainless Steel Bushings, it is important to ensure that they are properly lubricated to reduce friction and wear. Additionally, regular maintenance and inspection are necessary to ensure that the bushings continue to operate effectively over time.
Overall, Buchsen 316 Stainless Steel Bushings provide a reliable and durable solution for applications requiring smooth, low-friction motion. Their corrosion resistance and durability make them a popular choice for applications in harsh environments.
Corrosion Resistance 316 Stainless Steel Backed Bushings Sliding Plain Sleeve Bearing, Metal-Polymer Bearings bearings boccole material or equivalent, Low Friction Bushing Metal-Polymer Bearings bearings
Buchsen 316 Stainless Steel Bushings Sliding Plain Sleeve Bearing
Corrosion Resistance 316 Stainless Steel Backed Bushings Sliding Plain Sleeve Bearing
Buchsen 316 Stainless Steel Bushings Sliding Plain Sleeve Bearing

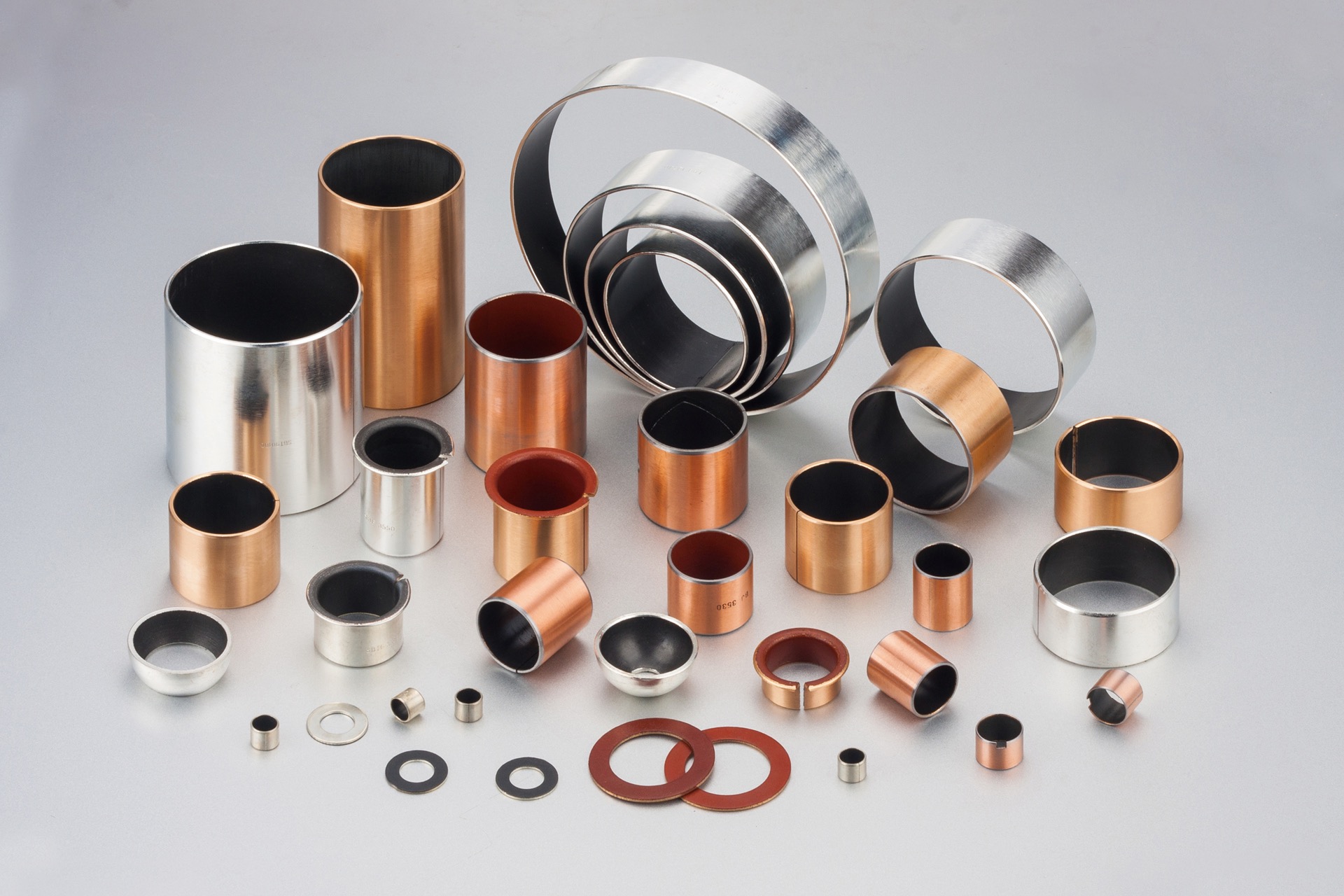

SS316+Bronze+ Bushes Self-Lubricating Sleeve Bearing
Carbon Steel Base with Porous Bronze Sintered, Metric & Inch Size
Variety of Liners, Multi-Finish Options, Low Cross-Section Walls, High PV
Choose from our selection of dry bush, self-lubricating metal bushing self-lubricating sleeve bearings, Low Friction Bushing bearings, steel bushings, Low Friction Bushing bushes including sleeve bearings, flanged sleeve bearings, and more. In stock and ready to ship.
| Material: | |
| SBT SBT-F bushing : | Copper plated steel backing, bronze, -layer |
| RBT bushing: | Stainless steel backing, bronze, -layer |
| BBT bushing: | Bronze backing, bronze, -layer |
SS316+Bronze+ Bushes
self-lubricating sleeve bearing
carbon steel base with porous bronze sintered or 316 Stainless Steel Bushings with porous bronze sintered Metric size and inch size
self-lubricating sleeve bearing
bronze bushings
Wrapped bronze bushings
composite bushings
POM composite bushings
polyamide bushings
stainless steel bushing sleeve
stainless steel bushing sleeve
stainless steel sleeve bushing
Multiple backing finish options Can be used with or without lubrication Small cross-section walls sleeve bushings is a very high PV product Variety of liners available
Check The Bushings Sample, Packaging, Logistics Etc.
Bushings (also known as plain bearings, sliding bearings, sleeve bearings, or dry bushings) operate with sliding movement between moving surfaces. The sleeves are selected based on the speed and load applied. Maintenance-free bushings do not require additional lubrication. bronze gleitlager supplies more than 3,000 different high-quality sleeve types made of various self-lubricated materials, including all metals, plastic sliding bushing, and composite bushes materials.
- Composite Self-Lubricating Bushings
- Metallic Self-Lubricating Bushings
- Dry Sliding Bushings
- Plain sleeve bushings
Bushings can be divided into the main categories based upon lubrication and material makeup. Click on any of the below https://bronzegleitlager.com to read more about our bushings types:
Featured Products From China
Stock Size Bushings
High-Quality Products, Sliding BearingsVerified Suppliers
Steel Bushing Sleeve Design, Flanged Sleeve Bearing Customized Size
Split-Type Sleeve Bearings
Self-Lubricating
Plain, Inch
Plain, Metric
Split-Type Sleeve Bearings
Self-Lubricating
Flange, Inch
Flange, Metric
We manufacture bushings in various designs and from different materials. We also offer a wide assortment of self-lubricating sleeve bearing available from china.
Sleeve bearing, Carbon Steel & SS316 bushes, Plain Bearings made to order from china.
Split-type self-lubricating sleeve bearings are available to buy online from china.
Composite sleeve bearings from china. Selection according to shaft diameter, sliding bushing bearing id, or outer diameter. Online shop with a large size selection.
self-lubricating sleeve bearing. Sleeve Bearings. Support radial loads (perpendicular to the shaft). Flanged Sleeve Bearings. Flanged Sleeve Bearings.
self-lubricating sleeve bearing (sometimes called bushings, journal bearings or plain bearings) facilitate linear movement between two parts
Sleeve Bearings &, Split-Type, Composite Bushings
bronze gleitlager has a great selection of bronze sleeve bearings. Choose from small series, standard series, lined types. Check out our new split-type sleeve bearings which have a composite liner that consists of a carbon steel backing. Solid or bronze bearings stock is also available. Place your order today.
Wrapped composite sliding bearing, tin-plated steel/, DIN 1494/ISO 3547, Maintenance-free, sleeve bushings can be produced from an ID of 3mm all the way up to 400mm.
About us, www.bronzegleitlager.com self-lubricating sleeve bearing Stainless Steel Sleeve Bearing the Online Bearing Store, all kinds of bearings available made in china.
self-lubricating sleeve bearings versus High-Precision Ball Bearings
| Technical data | |
| Material: | Stainless Steel/sintered bronze/ sliding layer |
| Standard: | Multilayer bearings |
| Sliding layer (thickness): | 0.01-0.03mm |
| Tensile strength Rm: | - |
| Yield strength Rp 0.2: | - |
| Elongation in % A10: | - |
| Hardness: | - |
| The coefficient of friction: | 0.03-0.20µ |
| Thermal conductivity: | 40W/m·K |
| Temperature range: | -200°C/280°C |
| Max. load static: | Ca 250N/mm² |
| Max. load, dynamic: | 80N/mm² |
| Max. sliding speed (w.lubr.): | w/o lube. 2.5m/s – With lubricating. 5m/s |
| Pv-value, Mpa x m/s, kont / int: | 3.6/5 |
| | |
| | |
| Counter material | |
| Recommended shaft hardness: | >165HB |
| Rec. shaft surface roughness (Ra) | 0.4 |
| Recommended tolerance: | f7-h8 |
| House: | H7 |
Characteristics| Qualities| Features
-- Maintenance-free (self-lubricating).
-- Reduced coefficient of friction
-- Stainless steel| Stainless-steel} (anti-corrosive
-- Approved according to RoHS
Areas of use.
Foods as well as pharmaceutical industries. Offshore and also various other marine applications.
Shapes &types
Plain cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Available offered
with lead-free , with a varied selection of mixes specialized for variousnumerous} markets
Stainless Steel Sleeve Bearing
| BUSHING SIZE CHART SF-1 Size(SF-1,SF-1T,SF-1W,SF-1P,SF-1D,SF-1B,SF-1S,SF-1SS) |
| |
| Unit METRIC SIZE: mm |
d
Internal
diameter | D
Outside
diameter | Shaft | Bore H7 | Wall
Thickness | f1 | f2 | L |
| Min. | Max. | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 |
| 6 | 8 | 6 | 8 | 0.980 | 1.005 | 0.5 | 0.3 | 0606 | 0608 | 0610 | | | | | | | |
| 8 | 10 | 8 | 10 | 0806 | 0808 | 0810 | 0812 | 0815 | | | | | |
| 10 | 12 | 10 | 12 | 1006 | 1008 | 1010 | 1012 | 1015 | 1020 | | | | |
| 12 | 14 | 12 | 14 | 1206 | 1208 | 1210 | 1212 | 1215 | 1220 | 1225 | | | |
| 13 | 15 | 13 | 15 | | | 1310 | | | 1320 | | | | |
| 14 | 16 | 14 | 16 | | | 1410 | 1412 | 1415 | 1420 | 1425 | | | |
| 15 | 17 | 15 | 17 | | | 1510 | 1512 | 1515 | 1520 | 1525 | | | |
| 16 | 18 | 16 | 18 | | | 1610 | 1612 | 1615 | 1620 | 1625 | | | |
| 17 | 19 | 17 | 19 | | | 1710 | 1712 | | 1720 | | | | |
| 18 | 20 | 18 | 20 | | | 1810 | 1812 | 1815 | 1820 | 1825 | | | |
| 20 | 23 | 20 | 23 | 1.475 | 1.505 | 0.8 | 0.4 | | | 2010 | 2012 | 2015 | 2020 | 2025 | 2030 | | |
| 22 | 25 | 22 | 25 | | | 2210 | 2212 | 2215 | 2220 | 2225 | 2230 | | |
| 24 | 27 | 24 | 27 | | | | | 2415 | 2420 | 2425 | 2430 | | |
| 25 | 28 | 25 | 28 | | | 2510 | 2512 | 2515 | 2520 | 2525 | 2530 | 2540 | 2550 |
| 28 | 32 | 28 | 32 | 1.970 | 2.005 | 1.0 | 0.5 | | | | | 2815 | 2820 | 2825 | 2830 | 2840 | |
| 30 | 34 | 30 | 34 | | | | 3012 | 3015 | 3020 | 3025 | 3030 | 3040 | |
| 32 | 36 | 32 | 36 | | | | | | 3220 | | 3230 | 3240 | |
| 35 | 39 | 35 | 39 | | | | 3512 | 3515 | 3520 | 3525 | 3530 | 3540 | 3550 |
| 38 | 42 | 38 | 42 | | | | | 3815 | | | 3830 | 3840 | |
| 40 | 44 | 40 | 44 | | | | 4012 | | 4020 | 4025 | 4030 | 4040 | 4050 |
| SF-1 Size(SF-1,SF-1T,SF-1W,SF-1P,SF-1D,SF-1B,SF-1S,SF-1SS) |
| d | D | Shaft | Bore H7 | Wall
Thickness | f1 | f2 | L |
| Min. | Max. | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 |
| 45 | 50 | 45 | 50 | 2.460 | 2.505 | 1.2 | 0.6 | 4520 | 4525 | 4530 | 4540 | 4550 | | | | |
| 50 | 55 | 50 | 55 | 5020 | | 5030 | 5040 | 5050 | 5060 | | | |
| 55 | 60 | 55 | 60 | | | 5530 | 5540 | 5550 | 5560 | | | |
| 60 | 65 | 60 | 65 | | | 6030 | 6040 | 6050 | 6060 | 6070 | | |
| 65 | 70 | 65 | 70 | | | 6530 | 6540 | 6550 | 6560 | 6570 | | |
| 70 | 75 | 70 | 75 | | | | 7040 | 7050 | 7060 | 7070 | 7080 | |
| 75 | 80 | 75 | 80 | | | 7530 | 7540 | 7550 | 7560 | 7570 | 7580 | |
| 80 | 85 | 80 | 85 | 2.440 | 2.490 | 1.4 | 0.7 | | | | 8040 | 8050 | 8060 | 8070 | 8080 | 80100 |
| 85 | 90 | 85 | 90 | | | | 8540 | | 8560 | | 8580 | 85100 |
| 90 | 95 | 90 | 95 | | | | 9040 | 9050 | 9060 | | 9080 | 90100 |
| 95 | 100 | 95 | 100 | | | | | 9550 | 9560 | | 9580 | 95100 |
| 100 | 105 | 100 | 105 | | | | | 10050 | 10060 | | 10080 | |
| 105 | 110 | 105 | 110 | | | | | | 10560 | | 10580 | |
| 110 | 115 | 110 | 115 | | | | | | 11060 | | 11080 | |
| 120 | 125 | 120 | 125 | 2.415 | 2.465 | 1.6 | 0.8 | | | | | | 12060 | | 12080 | 120100 |
| 125 | 130 | 125 | 130 | | | | | | 12560 | | | 125100 |
| 130 | 135 | 130 | 135 | | | | | | 13060 | | 13080 | 130100 |
| 140 | 145 | 140 | 145 | | | | | | 14060 | | 14080 | 140100 |
| 150 | 155 | 150 | 155 | | | | | 15050 | 15060 | | 15080 | 150100 |
| 160 | 165 | 160 | 165 | | | | | | 16060 | | 16080 | 160100 |
| 180 | 185 | 180 | 185 | | | | | | | | 18080 | 180100 |
| 190 | 195 | 190 | 195 | | | | | | | | 19080 | 190100 |
| 200 | 205 | 200 | 205 | | | | | | 20060 | | 20080 | 200100 |
| 220 | 225 | 220 | 225 | | | | | | | | 22080 | 220100 |
| 250 | 255 | 250 | 255 | | | | | | | | 25080 | 250100 |
| 260 | 265 | 260 | 265 | | | | | | | | 26080 | 260100 |
| 280 | 285 | 280 | 285 | | | | | | | | 28080 | 280100 |
| 300 | 305 | 300 | 305 | | | | | | | | 30080 | 300100 |
China High-Quality Cheap Price
. Item: Stainless Bearing
. Type: Sleeve bushings
. Material: Stainless Steel
. Lubrication: Grease
Self-lubricating sleeve bearing
Sliding Bearing & Precision Industrial Ball Bearings
self-lubricating sleeve bearing types from stock - the china standard sliding bearings range
VIIPLUS CHINA Bearings & Bushings are the complete, one-stop supplier to OEM's and to wholesalers sourcing high-precision, sliding bearings, bearing related sleeve bearings, and associated professional services including world-class engineering and design.
Application:
self-lubricating sleeve bearing for flexible cable, drag chains, cable tracks, cable carriers, and energy chains.
We serve a broad range of High-Precision Ball Bearings cheap prices balls bearings from china, steering complex projects from concept to completion to help solve the toughest challenges.
Learn about our project capabilities across numerous markets, within Chinese and international communities.
A bushing is a classification of the overall category of the bearings.
A bushing is a thin tube or sleeve that allows relative movement by sliding (our type) compared to rolling. A bushing can also be called a plain bearing. However, the term sleeve bushing would be superfluous. Thus, a bushing is a bearing, but a bearing is not necessarily a letter type.
A bearing is a general term for something that allows a relative movement between two components, surfaces, etc.
Find out more about what a warehouse is.
Do you have any more questions? Please feel free to contact us.
Cheap Price
Type: Stainless Steel Ball Bearing
Item: sleeve
Inner Diameter (bore) size
Tolerance
sleeve bushings Code
Our self-lubricating sleeve bearing and ball bearings sleeve bushings and design solutions will enhance your product performance; competitive price from china, and make your project much easier. Discover which of our extensive bushing and bearings or services is just right for your application.
Bushings (Plain Bearings And Sleeve Bearings)
Ball Bearings, Sliding Bearing, Bushings, Rod Ends & Other Self-Lub Rating Bearings Sleeve Bearings
Choose from a variety of Plain Bearing and polymer bushing, washers, strips, plate, and bushes as well as linear slides and guide bearings
Cost down, service life up with sliding bearing and bushings moving applications
High-performance guide bushing and sliding bearings for long life
Self-lubricating Plain Bearings Extend Service Life & Reduce Costs by 30~50%
Change Your Bearing Now
Stainless Steel Sleeve Bearings
steel bushing sleeve stainless steel sleeve bushings stainless steel sleeve bearings steel bushing sleeve metal bushing sleeve stainless steel sleeve bearing steel sleeve bushing
